Nokia 9500 MPR - Figure 202 SDH-RING Cross Connection

Provision cross connections
368
WebEML User Manual
1. Verify port segregation provisioning. Port segregation should be provisioned
between parallel radio paths at both ends when they exist on the NE. Also port
segregation should be provisioned between the radio port and other Ethernet
and/or radio ports where connectivity is not desirable. See Provision port
segregation/connectivity for detailed steps to view/provision port segregation.
2. Select SDH port and drag to draw line to RING port.
SDH-RING pop-up displays. See Figure 202.

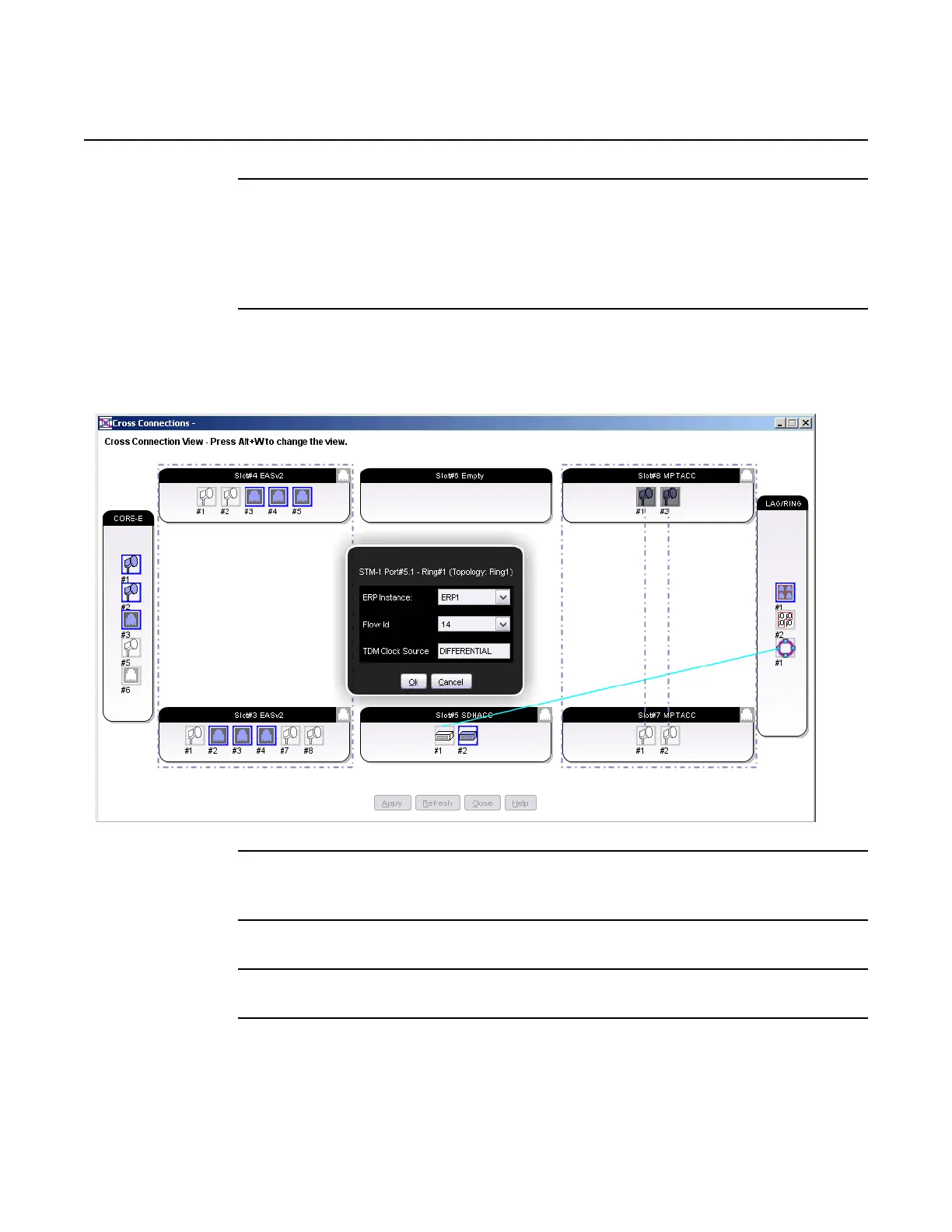

Figure 202 SDH-RING Cross Connection
3. On the STM-1(OC-3)_RING pop-up, verify the ERP instance to be cross
connected.
4. On the STM-1(OC-3)_RING pop-up, verify the Flow Id to be cross connected.
5. On the STM-1(OC-3)_RING pop-up, click OK.
6. On the Cross Connection screen, click Apply.
Release 7.0.0 3DB 19286 ACAA Issue 01
