• ID: LAG identification (from 1 to 14)
• Name: optional field (max. 32 characters). You can name the ports in
the LAG and the LAG itself separately.
• Type: L1 Radio
• Size: number of ports involved in the LAG (max. 4)
• Key: the key automatically changes according to the ID entered in the
ID field.
• LACP (Link Aggregation Control Protocol): fixed to “Disabled” for Radio
LAGs
• Timeout: this field is disabled for Radio LAGs.
3. Click on Create. The LAG appears in the top panel of the LAG Configuration
screen; see Figure 689.

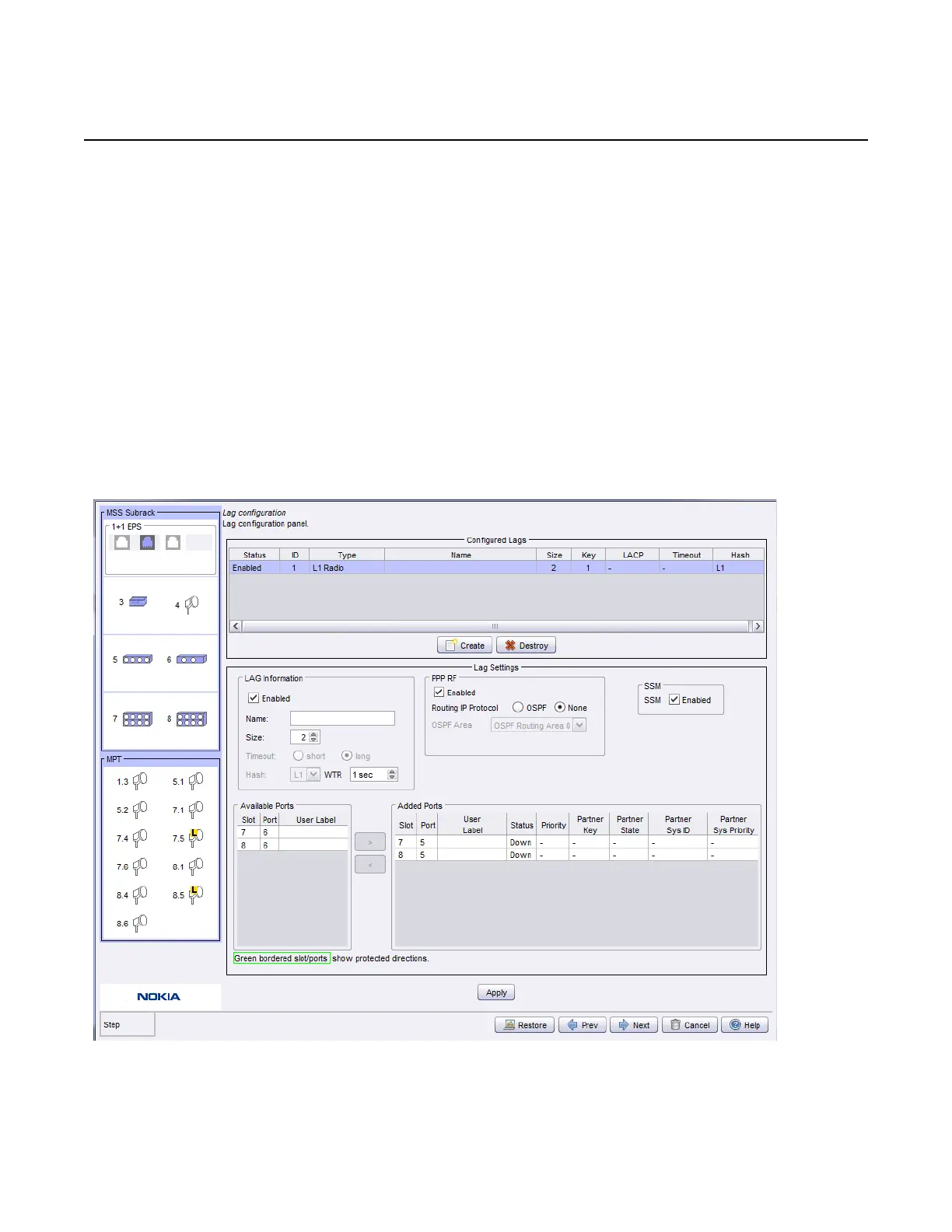

Figure 689 Created L1 Radio LAG
4. Select the new LAG.
