Nokia 9500 MPR - Figure 241 Provision Core;Eas;Mss-O Synchronous Ethernet Operation Mode

Provision Ethernet ports
416
WebEML User Manual
To provision synchronous Ethernet operation mode parameters
1. Provision Ethernet port Synchronous Ethernet Operation Mode parameters
using the following procedure. See Figure 241.

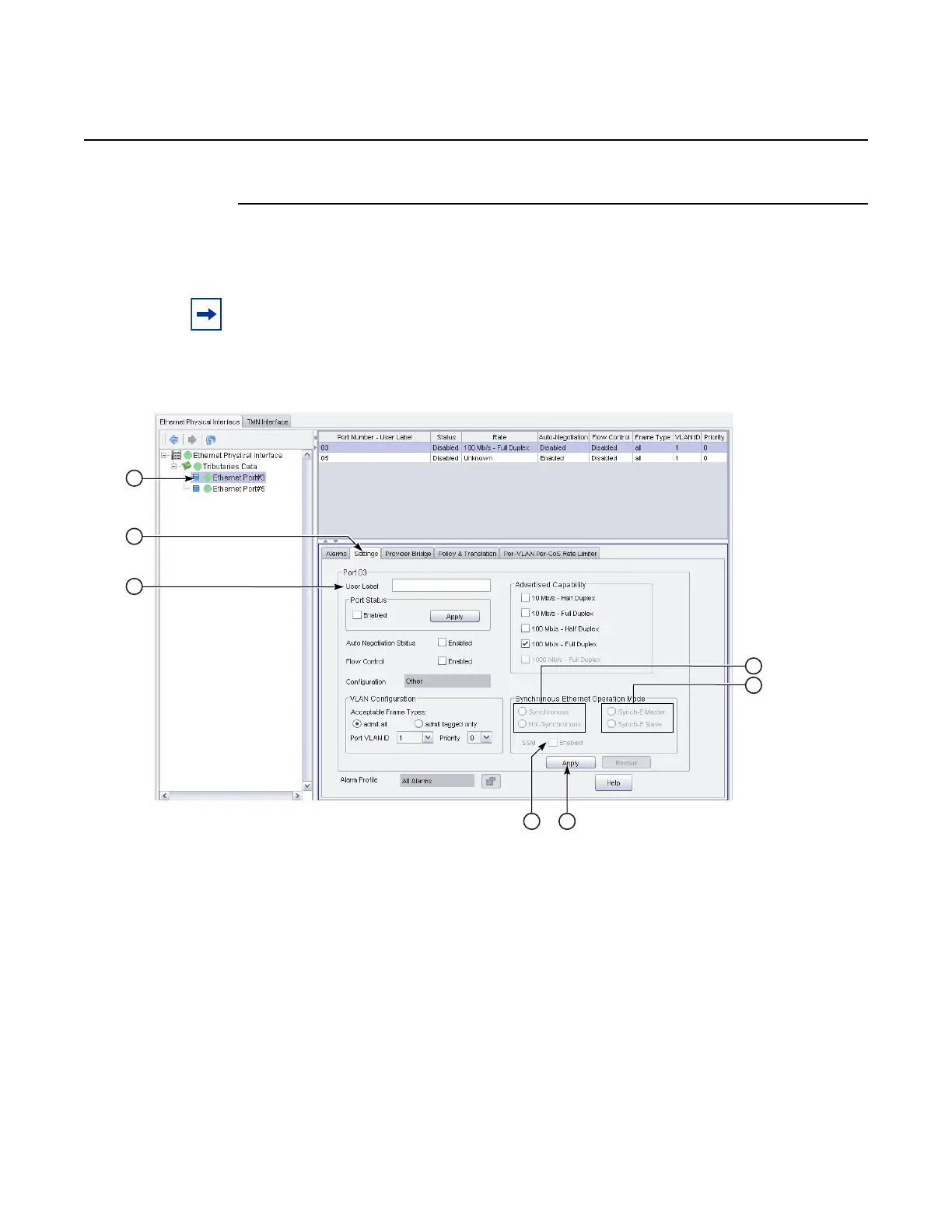

Figure 241 Provision Core/EAS/MSS-O synchronous Ethernet operation mode
a. Select Ethernet Port#n to provision (Ethernet Port #1/#6).
b. Select Settings tab.
c. Configure a user port label if needed.
d. Provision Synchronous Ethernet Operation Mode: select Synchronous or
Not-Synchronous.
e. Synchronous Ethernet Operation Mode selected?
a. If Synchronous and electrical port, go to step f.
b. If Synchronous and optical port, go to step g.
c. If Not-Synchronous, go to step h.
Note: Synchronous Ethernet Operation Mode is supported by Ethernet ports configured on
the Core-E card, CorEvo card, EASv2 card, or MSS-O.
