WebEML User Manual Deprovision equipment ports

469

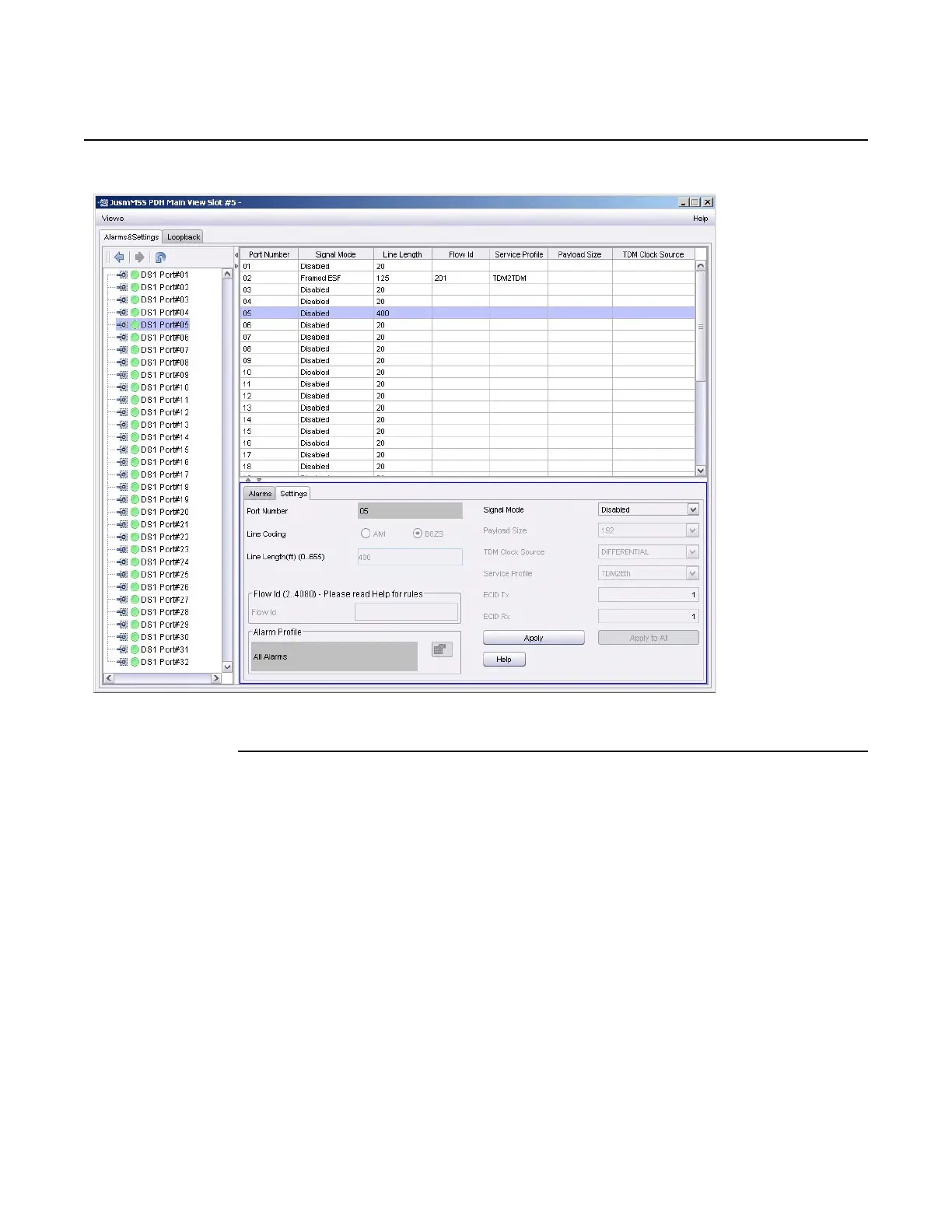

Figure 286 Deprovisioned P32E1DS1 DS1 port

To deprovision a DS3 P2E3DS3 port

1. Click on the P2E3DS3 DS3 card in the resource list area. See Figure 287.

Release 7.0.0 3DB 19286 ACAA Issue 01
