Use the Provisioning Tool
906
WebEML User Manual

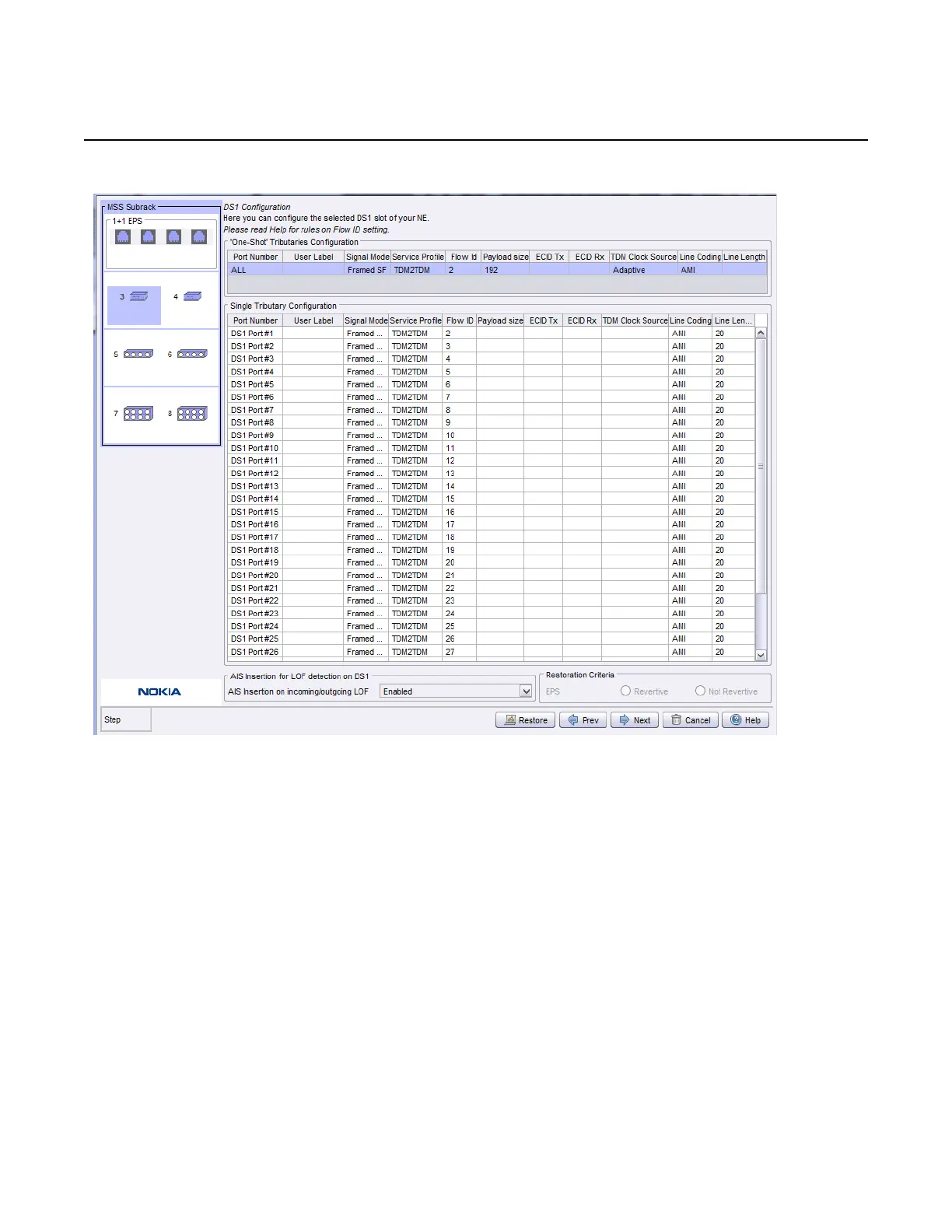

Figure 679 DS1 configuration screen
Configure the tributaries individually, or use the One-Shot Tributaries
Configuration to configure the following for all tributaries:
− Signal Mode: Disabled, Framed, Unframed, Framed SF or Framed ESF
− Service Profile: TDM2TDM or TDM2Eth
− Flow ID: is unique in the network.
Enter a flow ID in the One-Shot Tributaries Configuration to provide the
Flow ID for port #1. The tool will number the other tributaries consecutively
from the number entered.
− Payload size: the payload size is fixed at 192 bytes.
− ECID TX: Tx Over-the-hop ID. Must match the Rx ID at the other end.
Enter an ID in the One-Shot Tributaries Configuration to provide the ECID
for port #1. The tool will number the other tributaries consecutively from the
number entered.
− ECID RX: Rx Over-the-hop ID. Must match the Tx ID at the other end.
