Nokia 9500 MPR - Figure 341 Enabled MPT-HL or MPT-HLC Transceiver

To Next Page

To Previous Page

WebEML User Manual Disable equipment

527

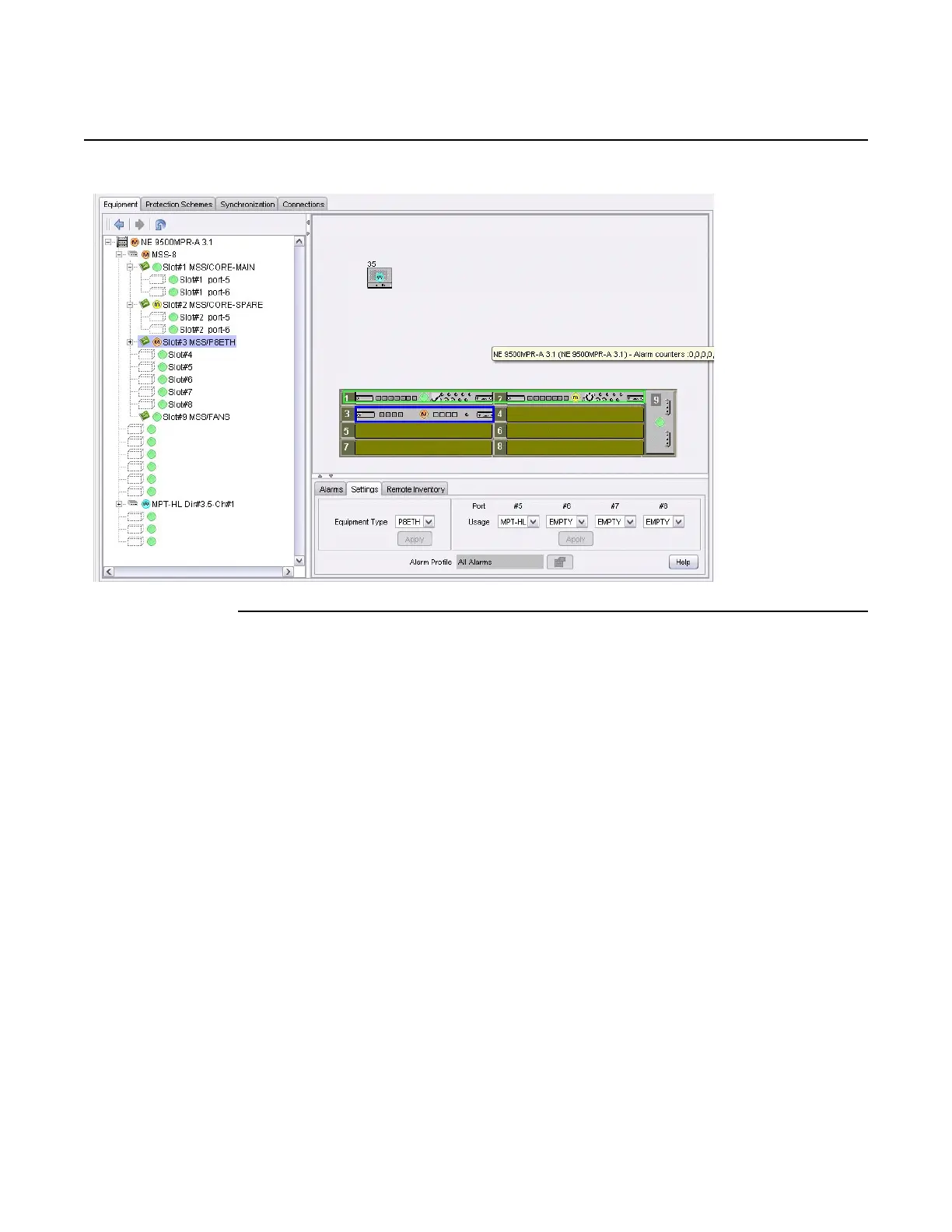

Figure 341 Enabled MPT-HL or MPT-HLC transceiver

3. From the Port # (5-8) Usage drop-down menu, select usage type Empty. See

Figure 342.

Release 7.0.0 3DB 19286 ACAA Issue 01
