WebEML User Manual Administer NE list

227

Figure 121 Favorite icon

Network Elements List window opens.

2. Select NE from the NEs Table and click Set Current.

The NEtO Overview window opens. See Figure 122.

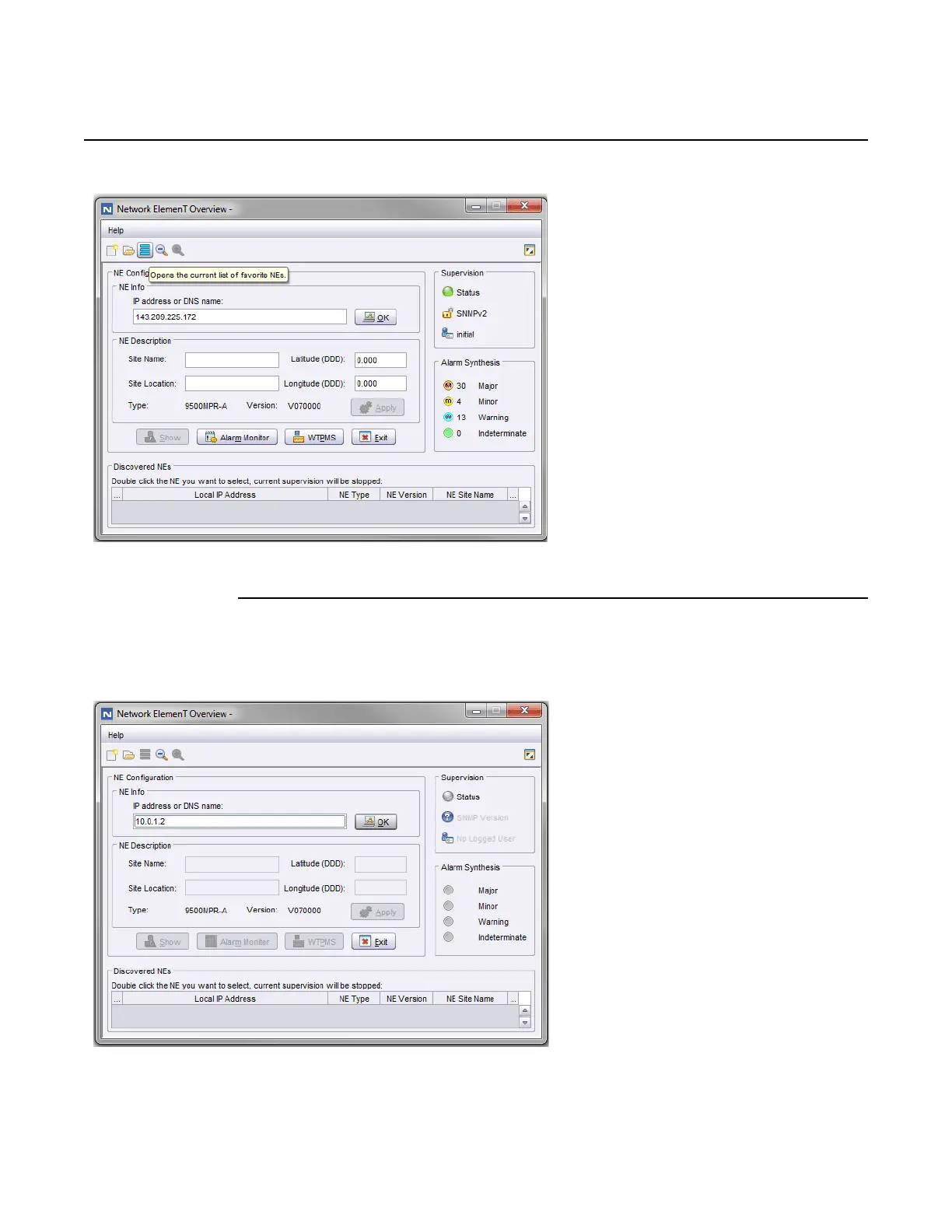

Figure 122 NEtO Overview window

Release 7.0.0 3DB 19286 ACAA Issue 01
