Nokia 9500 MPR - Figure 610 Provision MPT-HLC 1+1 XPIC Association

WebEML User Manual Configure radio parameters
809
•TX Freq
•Rx Freq
iii. From the Option drop-down menu, choose gain configuration identical (Std/
XPIC) to the values provisioned for the horizontal radio channel (step 14
iii).
iv. Click Apply.
v. Provision Vertical radio channel XPIC Configuration Polarization to Vertical.
vi. Click Apply.
16. Open XPIC Configuration tool. See Figure 604.
XPIC Configuration tool displays. See Figure 605.
17. Select Horizontal Radio port and drag to draw line to Vertical RADIO port.
XPIC Association pop-up displays. See Figure 610.

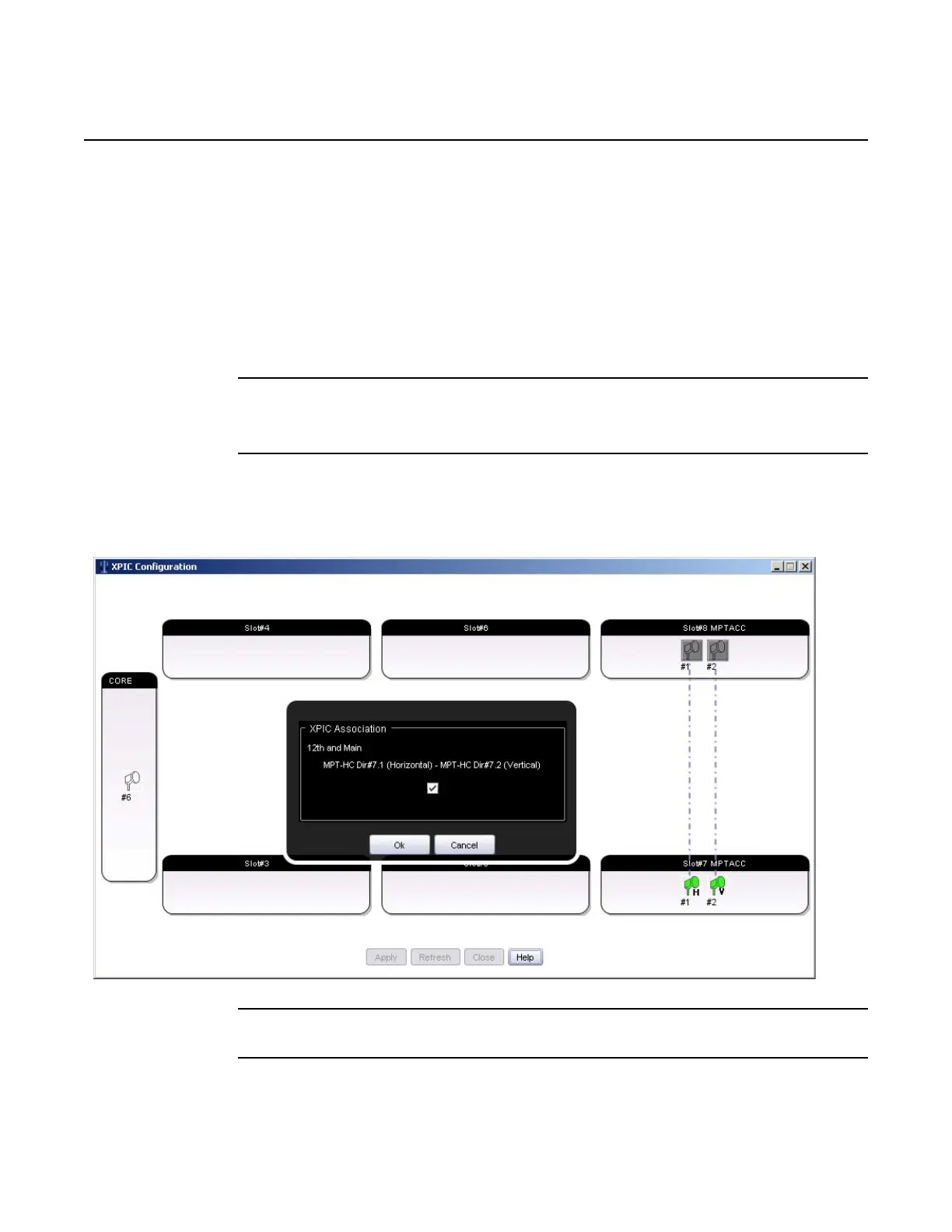

Figure 610 Provision MPT-HLC 1+1 XPIC association
18. Click OK.
19. Click Apply.
Release 7.0.0 3DB 19286 ACAA Issue 01
