Nokia 9500 MPR - Figure 283 Resource List Area: P32 E1 DS1 Selected

To Next Page

To Previous Page

Deprovision equipment ports

466

WebEML User Manual

1. Click on the P32E1DS1 card in the resource list area. See Figure 283.

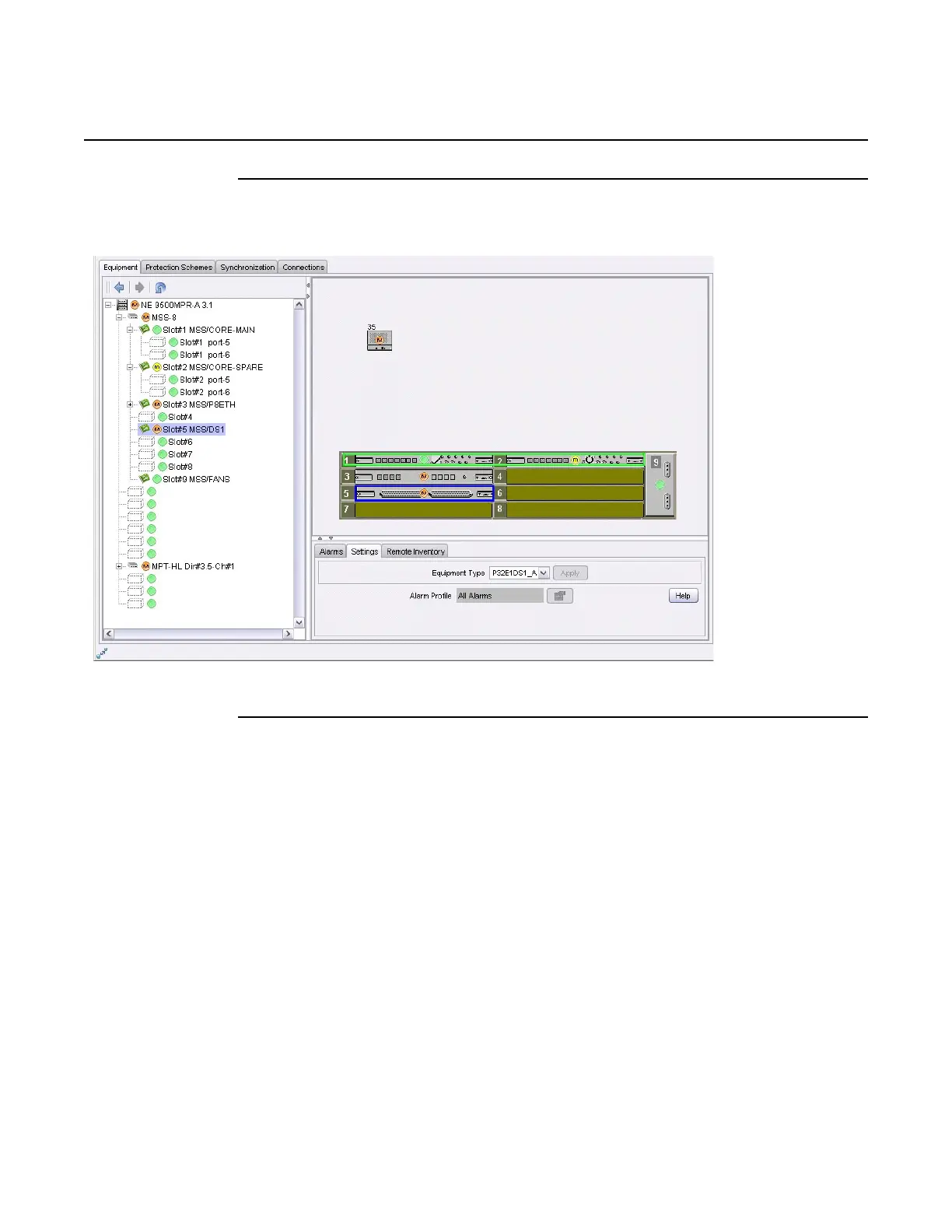

Figure 283 Resource list area: P32E1DS1 selected

The PDH Main View displays.

2. Select the Settings tab. See Figure 284.

Release 7.0.0 3DB 19286 ACAA Issue 01
