WebEML User Manual Use the Provisioning Tool
917

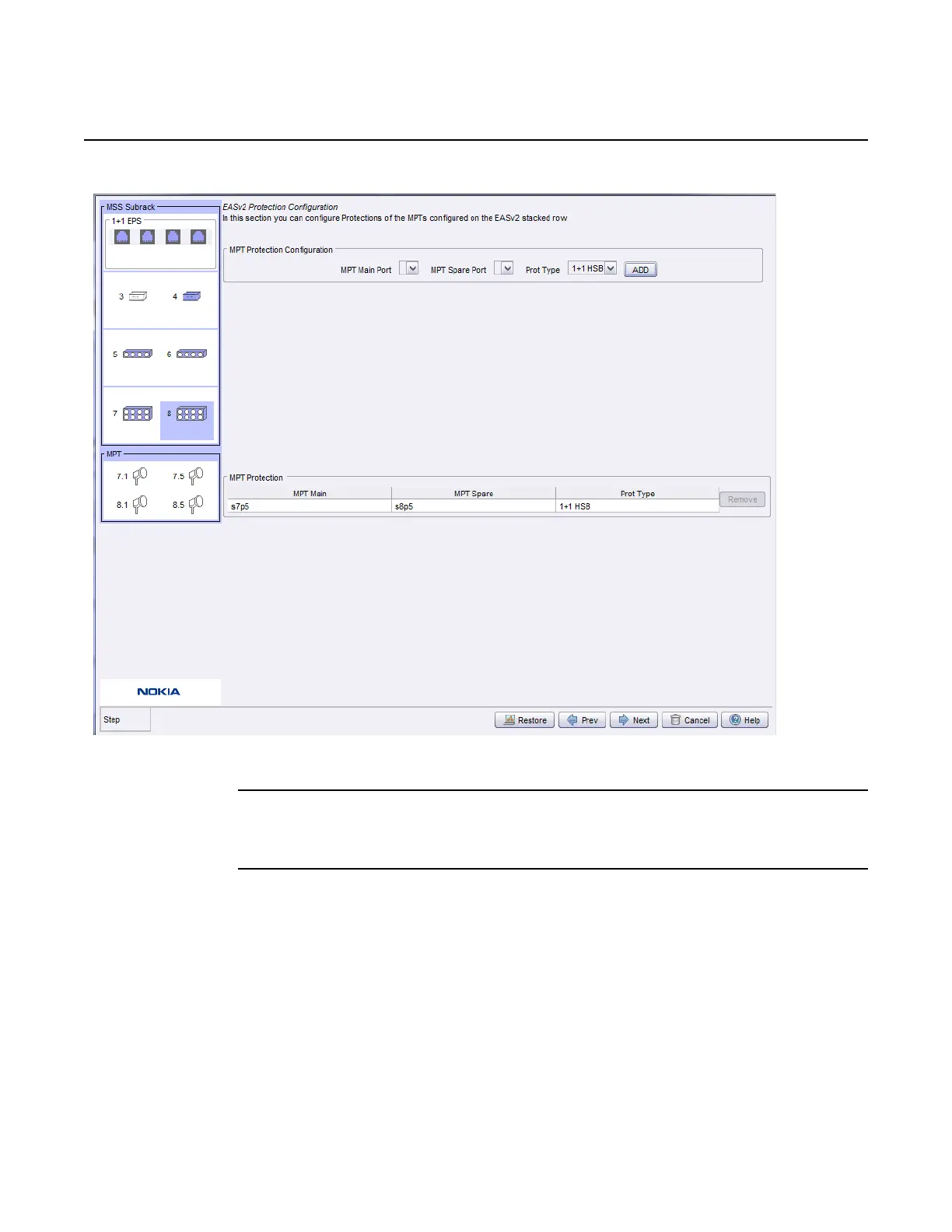

Figure 686 EASv2 protection
After one port is enabled the screen for MPT configuration appears.
5. Click on the Next button. The next screen to open depends on the configuration.
To configure the LAG configuration screen
1. The procedure to configure a LAG using the provisioning tool is the same as the
procedure to create a LAG using WebEML. Figure 687 shows the LAG
configuration screen.
Release 7.0.0 3DB 19286 ACAA Issue 01
