Nokia 9500 MPR - Figure 641 Provisioned MPT ODU 1+1 Horizontal XPIC Radio Channel

Configure radio parameters
856
WebEML User Manual
iii. From the Option drop-down menu, choose gain configuration (Std/XPIC).
iv. Click Apply.
v. Provision Horizontal radio channel XPIC Configuration Polarization to
Horizontal.
vi. Click Apply.

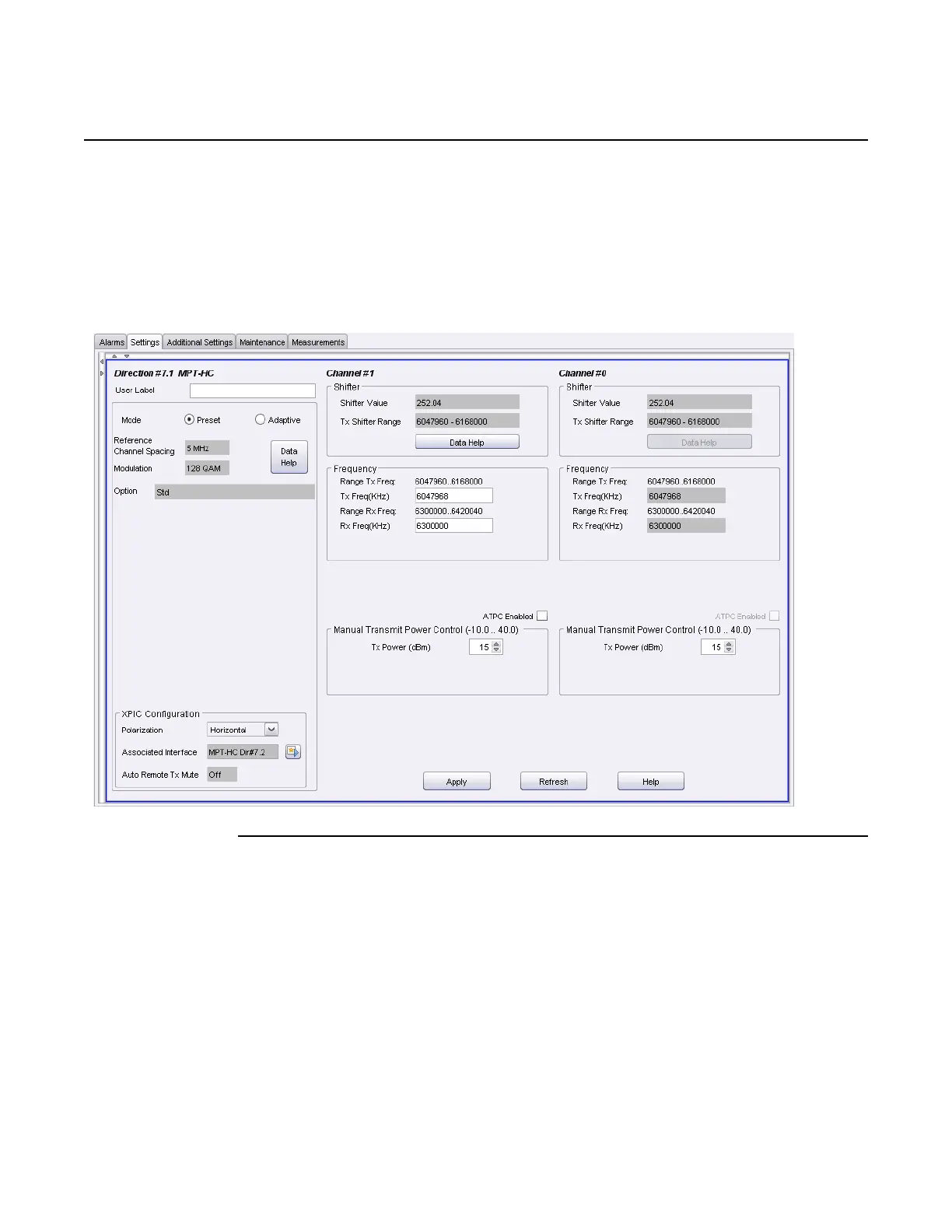

Figure 641 Provisioned MPT ODU 1+1 Horizontal XPIC radio channel
20. Provision MPT ODU Vertical XPIC 1+1 HSB Configuration:
i. Provision 1+1 HSB protection group. See step 29 for detailed steps to
provision radio channel parameters.
ii. Provision main Vertical radio channel. Provision the Vertical radio channel
using the following radio parameters identical to the values provisioned for
the horizontal radio channel (step 8 i).
a. Mode
b. Reference Channel Spacing
c. Modulation
d. Shifter
