Nokia 9500 MPR - Figure 555 NE E to NE G: Ethernet-Ring Cross-Connection on Node C

Provision cross connections in a mixed fiber/
microwave Ring
740
WebEML User Manual

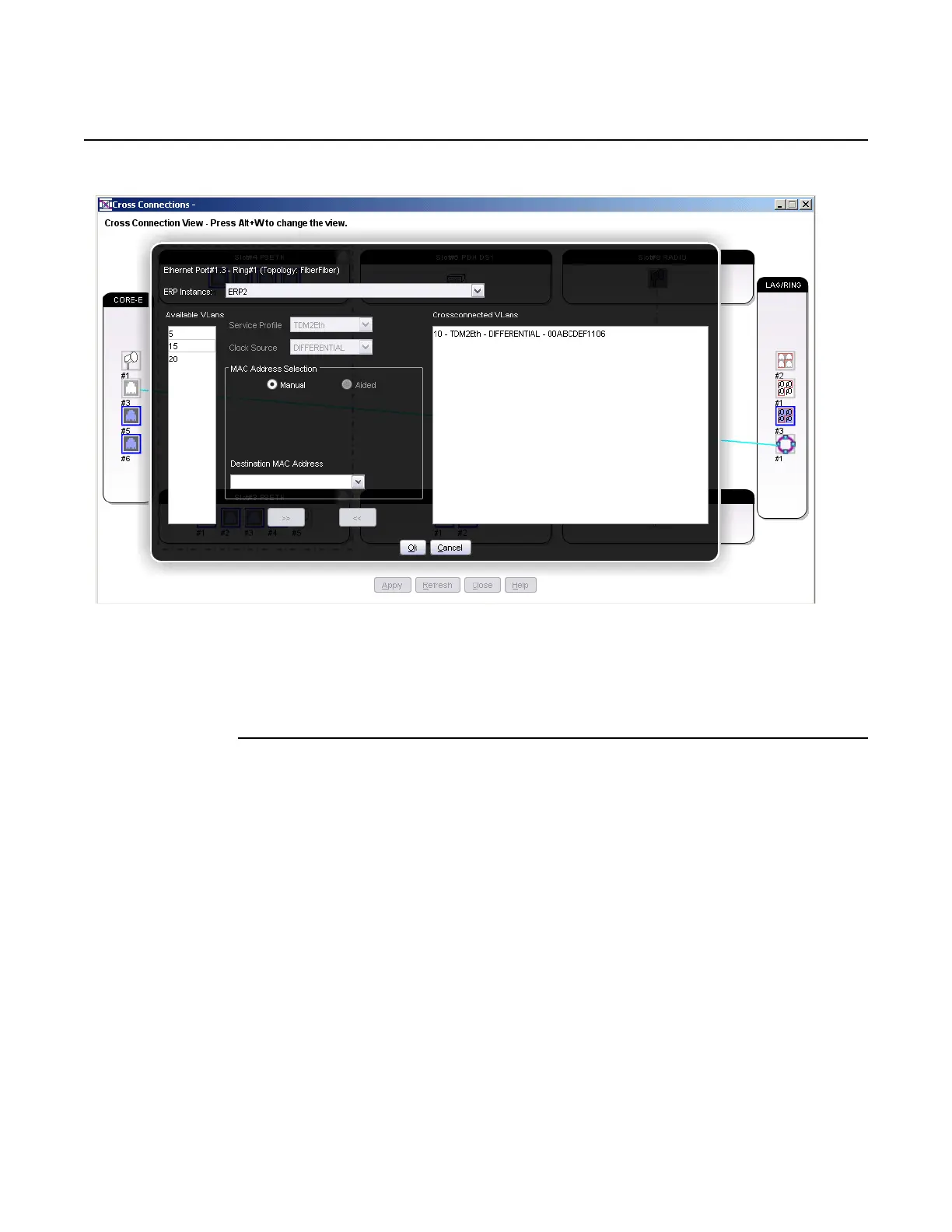

Figure 555 NE E to NE G: Ethernet-Ring cross-connection on Node C
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Destination MAC address: NE G Unicast MAC address
6. Configure a pass-through cross-connection on Node D, see Figure 556.
Release 7.0.0 3DB 19286 ACAA Issue 01
