Nokia 9500 MPR - Figure 705 Example of Created Vlans

WebEML User Manual Use the Provisioning Tool
937

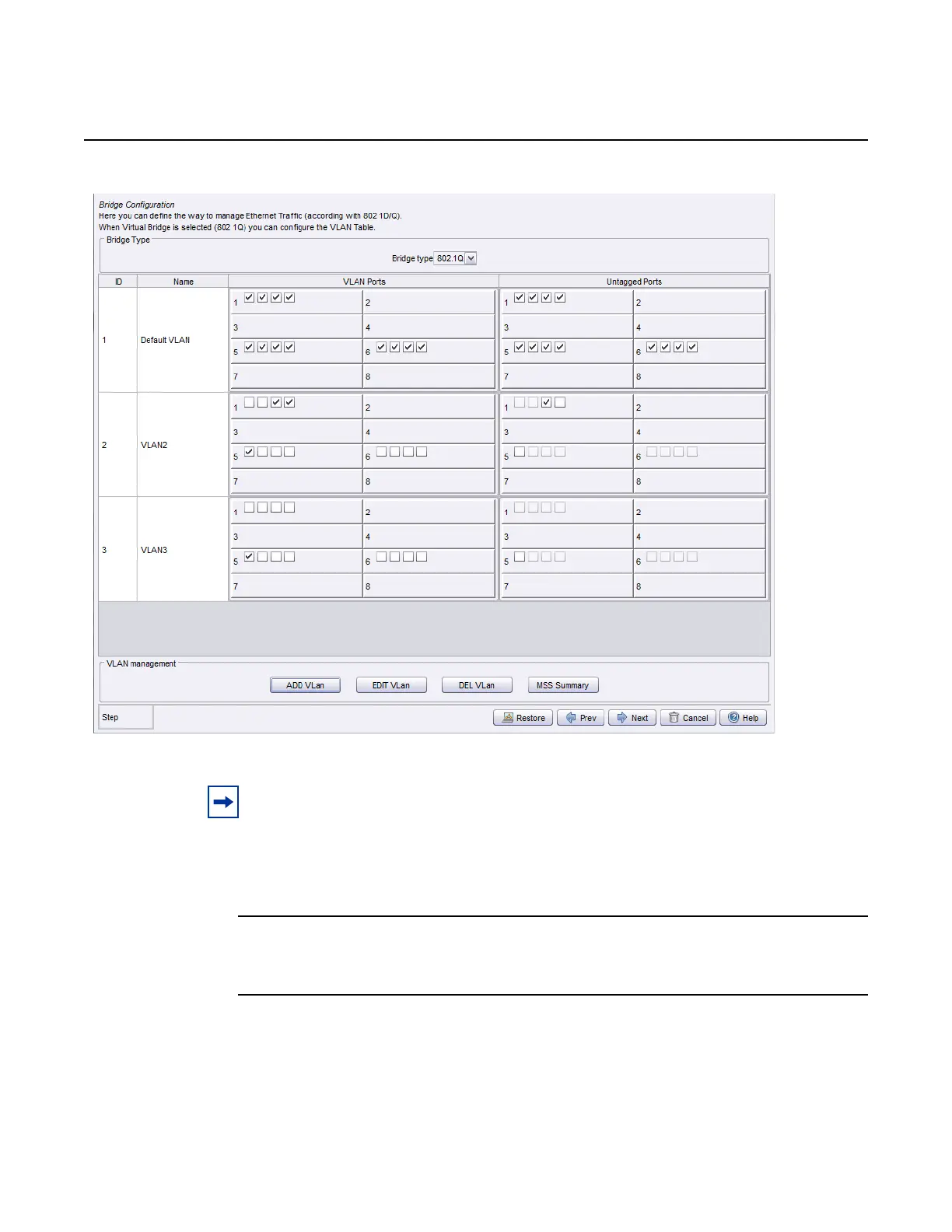

Figure 705 Example of created VLANs
4. Click on the Next button. The next screen to open depends on the configuration.
To configure the Port VLAN configuration screen
1. Figure 706 shows the configuration tab for the six ports of the Core-E card.
Figure 707 shows the configuration tab for the eight ports of the EASv2 card.
Configure the following as needed for each Ethernet port:
Note: When a board on which there is at least one port member of a VLAN is removed
from the MSS configuration screen, the management system advises the operator that
there are ports on the board that are members of a VLAN, asking confirmation of the
operation. If confirmed, the ports are automatically removed by the NE from the list of
member ports of the VLAN and from the list of the untagged ports in egress.
