Nokia 9500 MPR - Figure 639 Provisioned MPT ODU 1+0 Horizontal XPIC Radio Channel

Configure radio parameters
854
WebEML User Manual

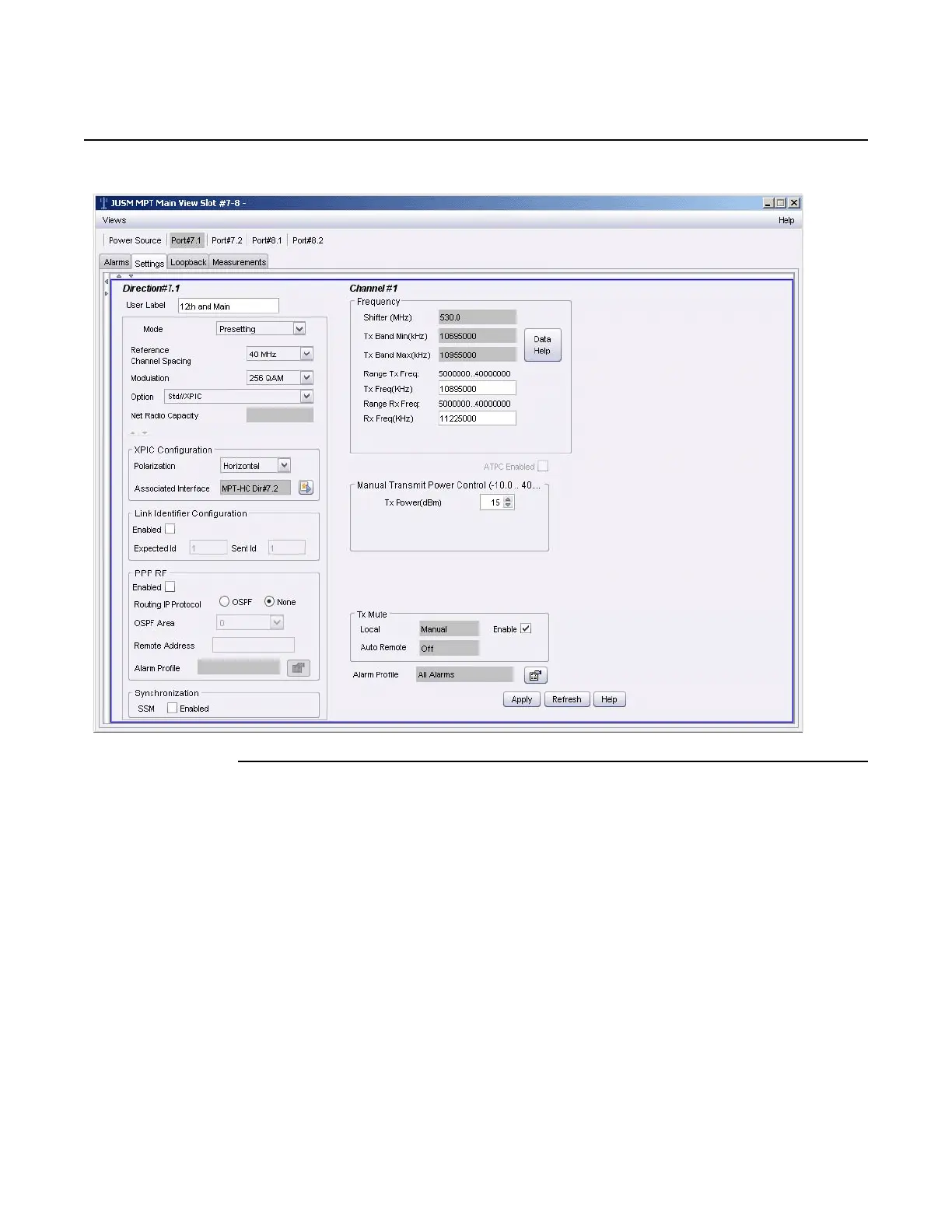

Figure 639 Provisioned MPT ODU 1+0 Horizontal XPIC radio channel
16. From the MPT Main View, select the Vertical 1+0 radio channel and verify the
correct radio channel is shown for Associated Interface Horizontal radio
channel. See Figure 640 for an example of a Provisioned Vertical XPIC radio
channel.
Release 7.0.0 3DB 19286 ACAA Issue 01
