Provision cross connections in a mixed fiber/
microwave Ring
724
WebEML User Manual

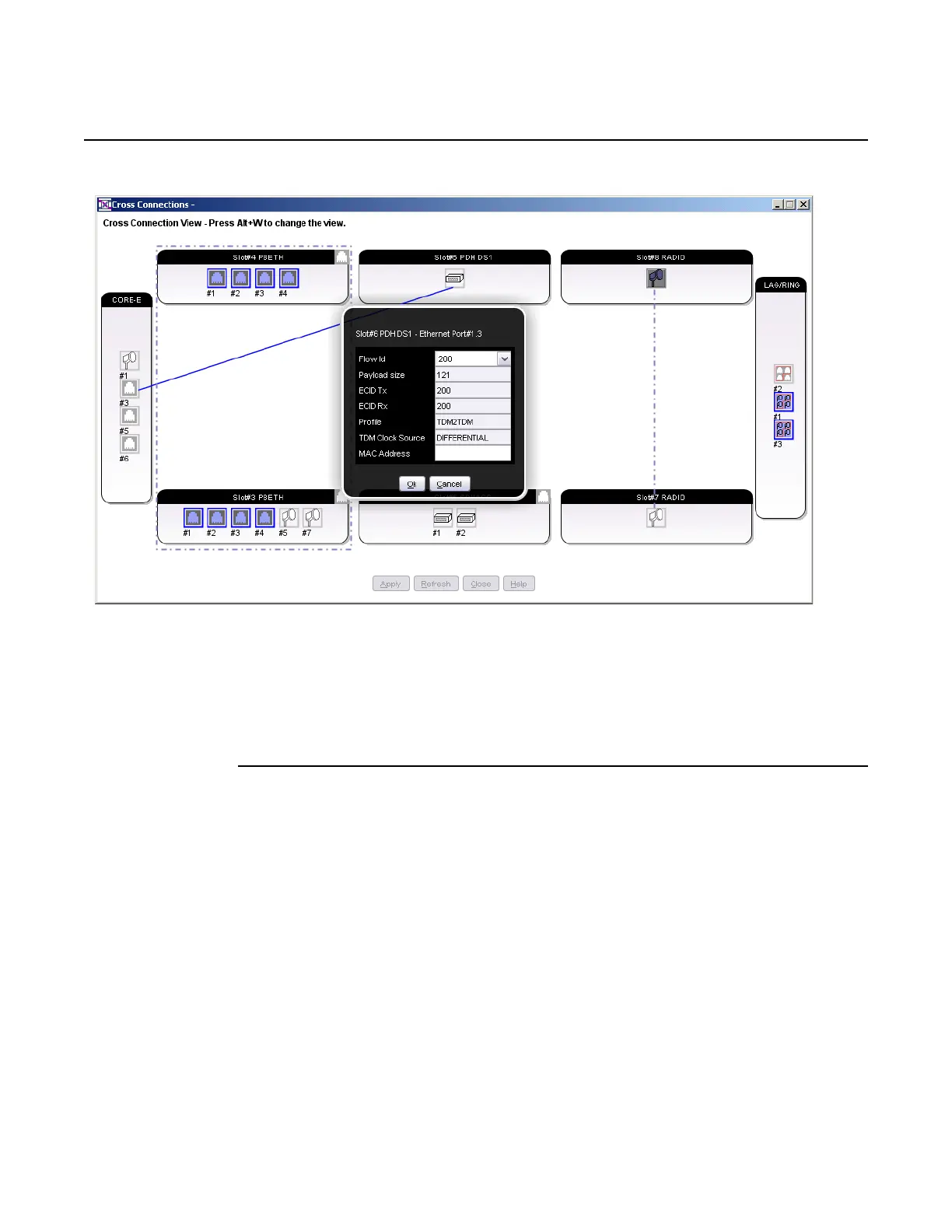

Figure 539 NE E to NE H: Ethernet-PDH cross-connection on NE E
e. Choose the flow ID from the Flow Id drop-down
f. Configure the payload size, ECID Tx, and ECID Rx parameters
g. Choose the Service profile: TDM2TDM or TDM2ETH
h. Choose the TDM clock source, if the Service profile is TDM2ETH
i. Enter the MAC address: NE H Unicast MAC address
2. Configure an Ethernet-Radio or Ethernet-PDH cross-connection on NE H, see
Figure 540 and Figure 541.
