Nokia 9500 MPR - Figure 394 Activate Tx Mute and Activate SW on Node D

WebEML User Manual Upgrade a Ring to R5.1.0 software
585

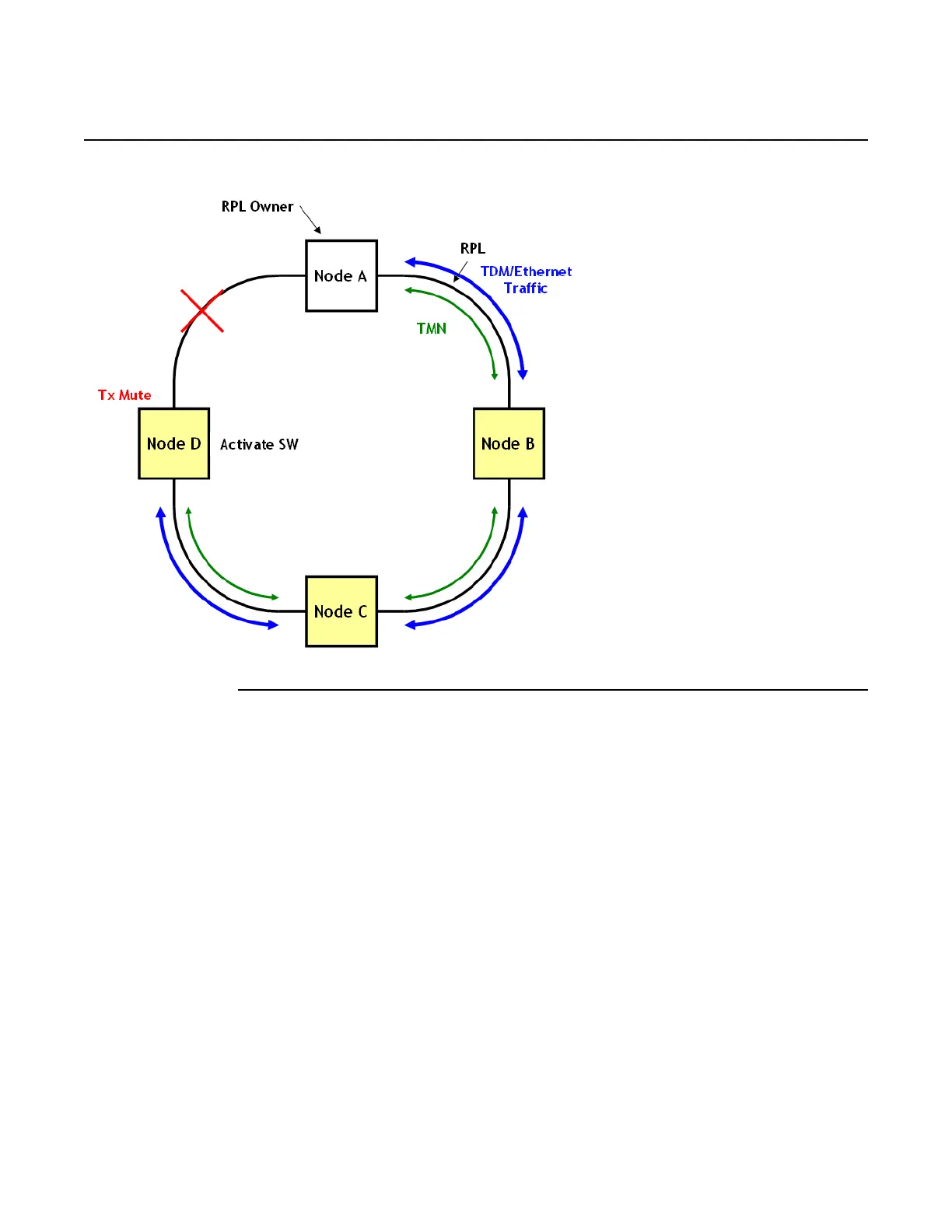

Figure 394 Activate Tx mute and activate SW on Node D
9. Remove the Tx mute toward Node A, see Figure 395. If the NE MAC Address of
Node A (used as Node ID by ERPS) is higher than NE MAC Address of Node D,
after the WTR time has expired, the RPL owner puts the Ring in Idle state,
otherwise all Ring Nodes other than RPL Owner go in Pending state. Node A
remains in Protection state.
