Provision cross connections in a mixed fiber/
microwave Ring
680
WebEML User Manual

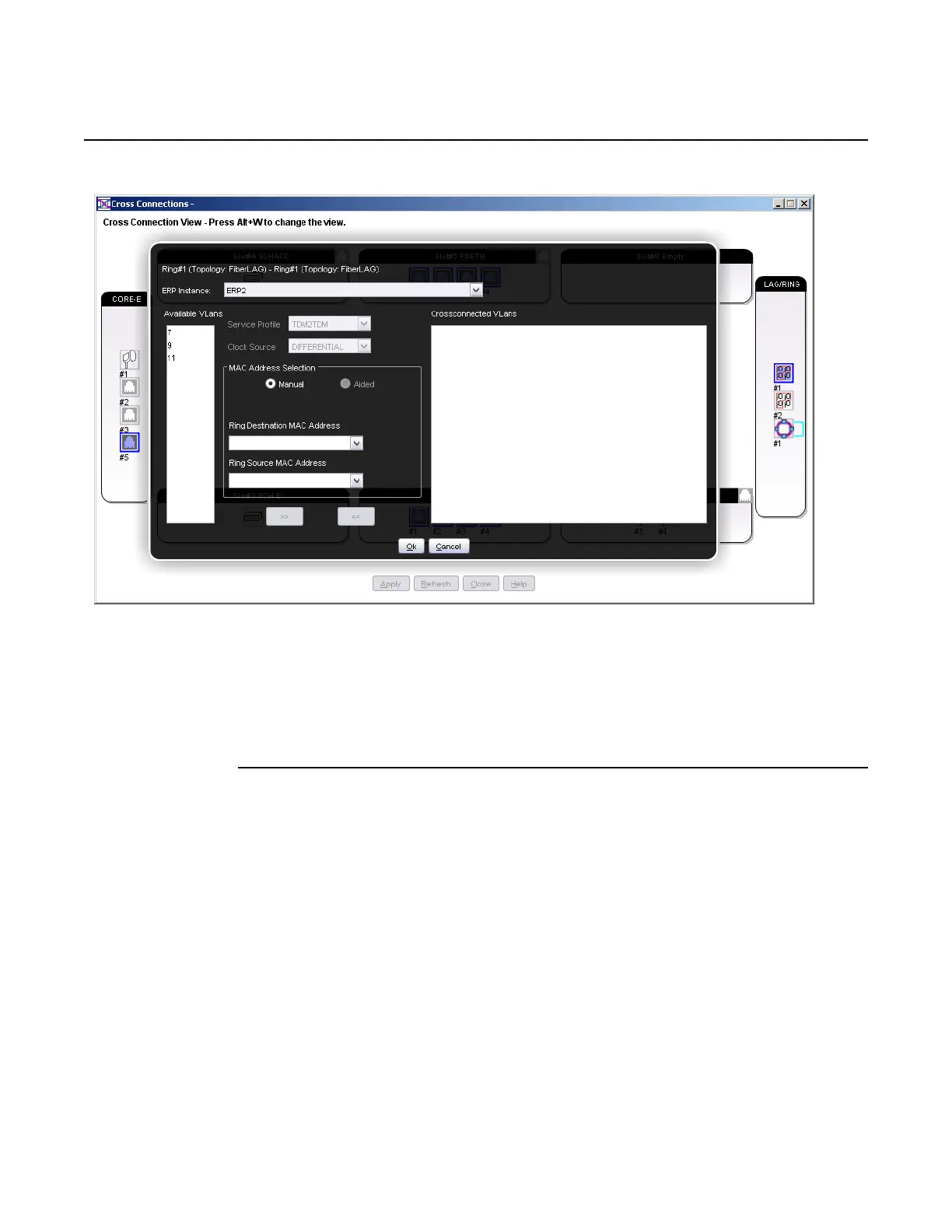

Figure 495 Node B to Node C: pass-through cross-connection on Node A
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node B Unicast MAC address
e. Enter the Ring Source MAC address: Node C Unicast MAC address
5. Configure a pass-through cross-connection on Node D, see Figure 496.
