Perform Tx Diversity Antenna operations
1074
WebEML User Manual
1. Select a radio direction in the Available MPT-HLC 1+1 HSB panel.
2. Click Force Main. A confirmation message is displayed; see Figure 785.

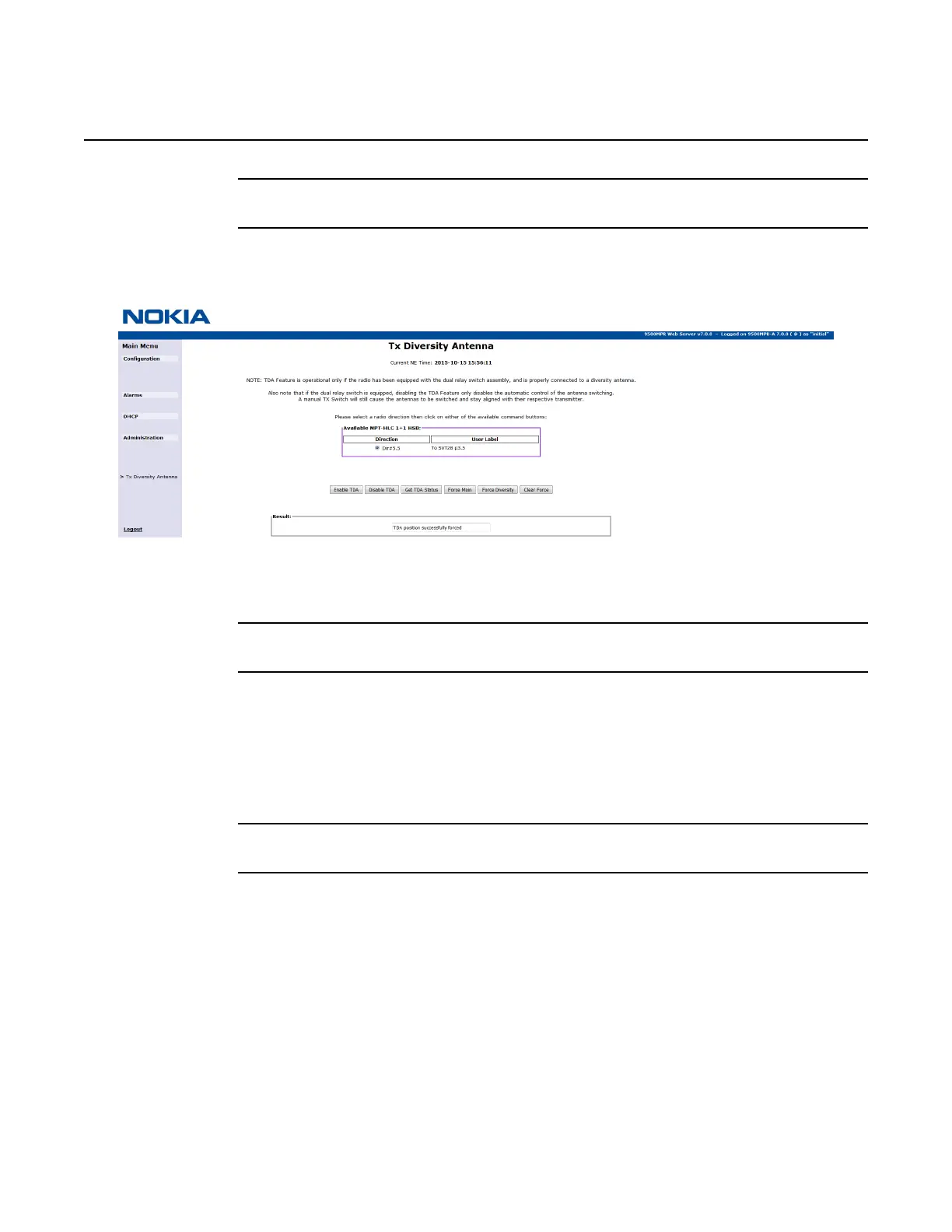

Figure 785 Tx Diversity: Force Main
If TDA is disabled, an error message is displayed: Error: cannot apply command.
To force transmission to the diversity antenna
1. Select a radio direction in the Available MPT-HLC 1+1 HSB panel.
2. Click Force Diversity. A confirmation message is displayed; see Figure 785.
If TDA is disabled, an error message is displayed: Error: cannot apply command.
If the antenna RF switch is not detected prior to the command, switching is
blocked and the TDA status continues to show the main antenna as active.
To clear forced transmission
1. Select a radio direction in the Available MPT-HLC 1+1 HSB panel.
2. Click Clear Force. A confirmation message is displayed; see Figure 786.
