Nokia 9500 MPR - Figure 468 Node a to Node D (Protected): PDH-Ring Cross-Connection on Node D

Provision cross connections in a mixed fiber/
microwave Ring
656
WebEML User Manual

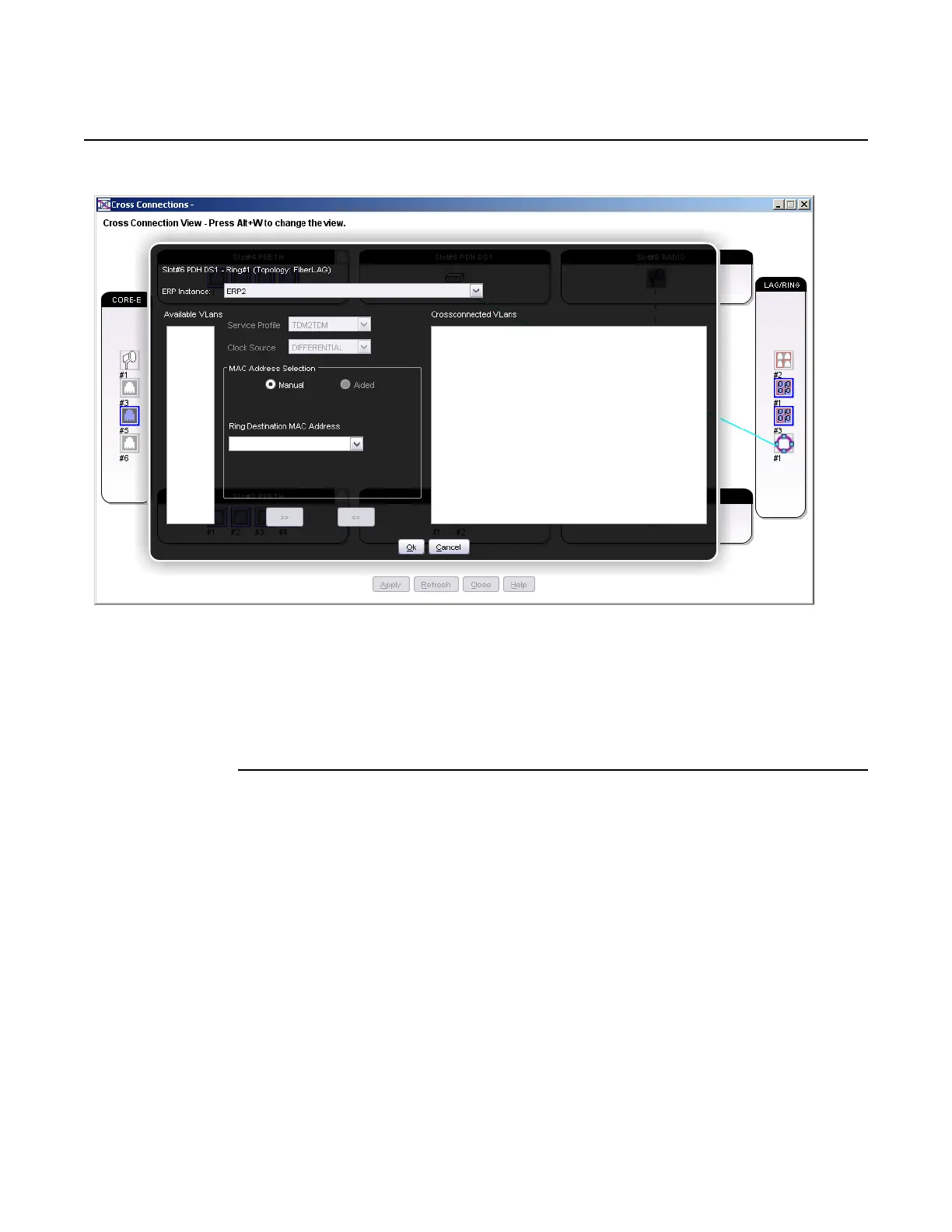

Figure 468 Node A to Node D (protected): PDH-Ring cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node A Unicast MAC address
To provision a cross-connection between Node A (protected) and Node D (protected)
1. Both traffic end points belongs to the fiber chain. Both end points are protected;
see Figure 469.
