Nokia 9500 MPR - Figure 342 Disable MPT-HL or MPT-HLC Transceiver

To Next Page

To Previous Page

Disable equipment

528

WebEML User Manual

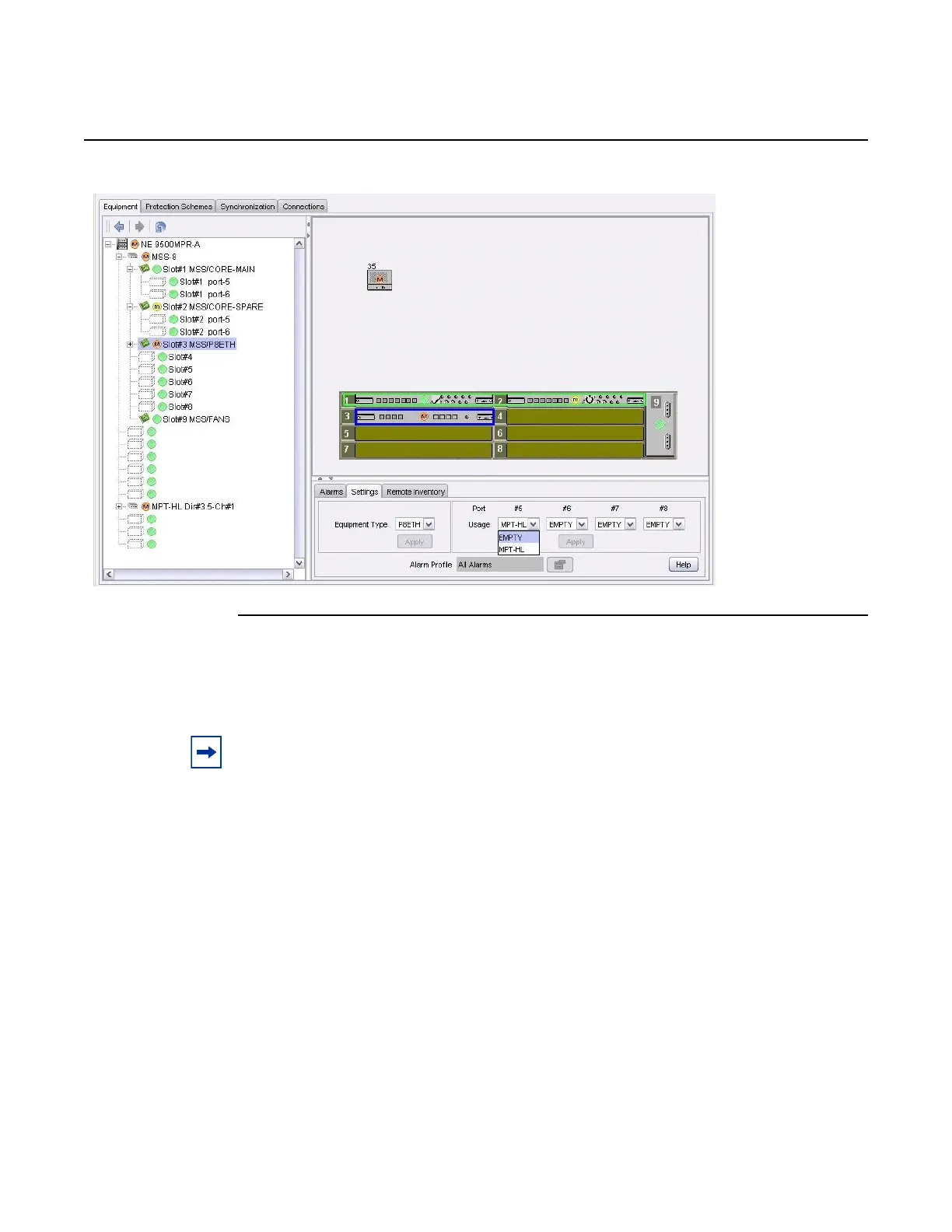

Figure 342 Disable MPT-HL or MPT-HLC transceiver

4. Click Apply.

The port # will display Empty and the MPT-HL/MPT-HLC is removed from the

resource list area. See Figure 343.

Note: MPT-HL/MPT-HLC Transceiver card will not disable if the port has any

cross-connections associated with the card.

Release 7.0.0 3DB 19286 ACAA Issue 01
