Use the Provisioning Tool
898
WebEML User Manual

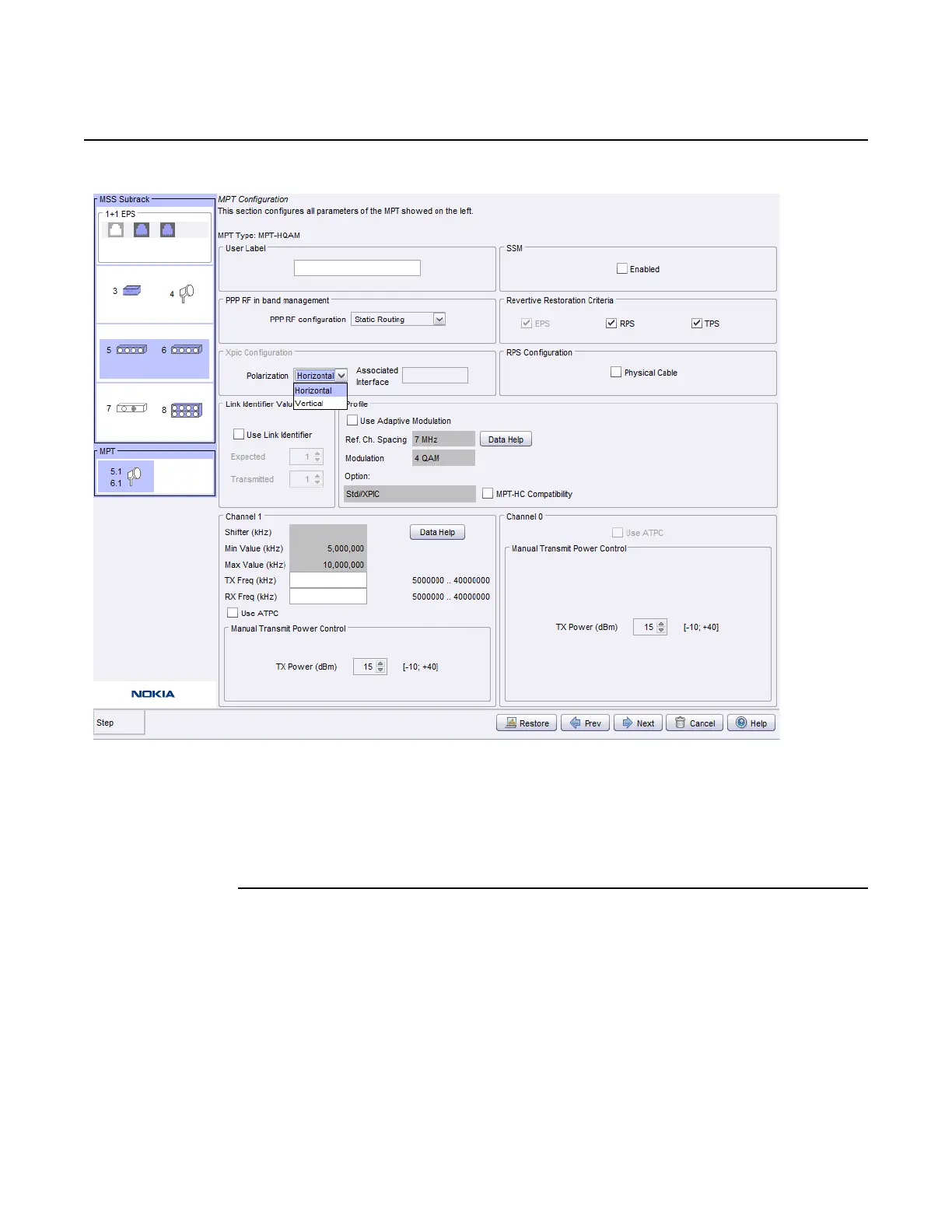

Figure 671 XPIC polarization selection
− Link Identifier: select the checkbox to enable Link Identifier
• Enter a number from 1 to 255 for Expected. The number must match
the associated Transmitter ID at the other end of the hop.
• Enter a number from 1 to 255 for Transmitted. The number must match
the associated Receiver ID at the other end of the hop.
2. See Figure 672 for 1+0 configuration with fixed modulation.
