WebEML User Manual Line Facing PDH/SDH Tributary Loopback
973

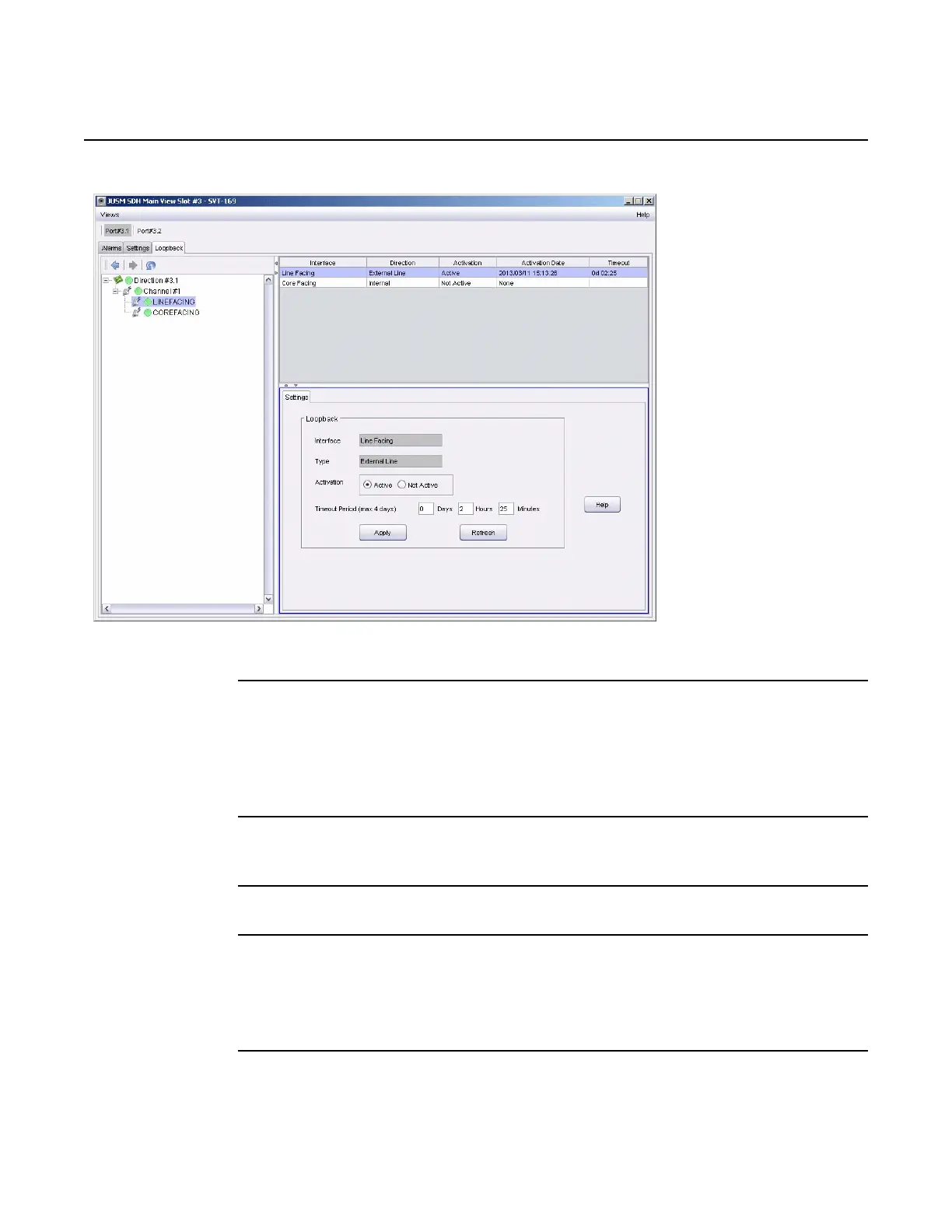

Figure 732 Line Facing SDH Tributary Loopback Active
To deactivate a Line Facing PDH/SDH Tributary Loopback
1. In the main equipment window, double-click the PDH/SDH Transponder Card
associated with the tributary to perform Line Facing PDH/SDH Tributary
Loopback. For E1/DS1 loopback, see Figure 726. For DS3 loopback, see
Figure 727. For SDH loopback, see Figure 728.
The PDH/SDH Main View for the selected PDH/SDH transponder opens.
2. Select Loopback tab. For E1/DS1 or DS3 loopback, see Figure 731. For SDH
loopback, see Figure 732.
3. For SDH loopback, select Port#s.n. See Figure 732.
4. For PDH loopback, select Port#nn External Line from the resource tree area;
DS1 Port#1-32 External Line or DS3 Port#1-2 External Line. See Figure 731.
For SDH loopback, select LINEFACING from the resource tree area.
See Figure 732.
5. Select Not Active radio-button in the Activation area.
