3. Configure the protection if needed:
In the MPT Protection Configuration area select the Main port and the MPT
Spare port (in the example of the following figure s5p1 means Slot #5 Port #1)
and in the Port Type field select the protection configuration: 1+1 HSB or 1+1
FD.
4. After the selection click on the ADD button. The screen shown in Figure 670 will
appear.

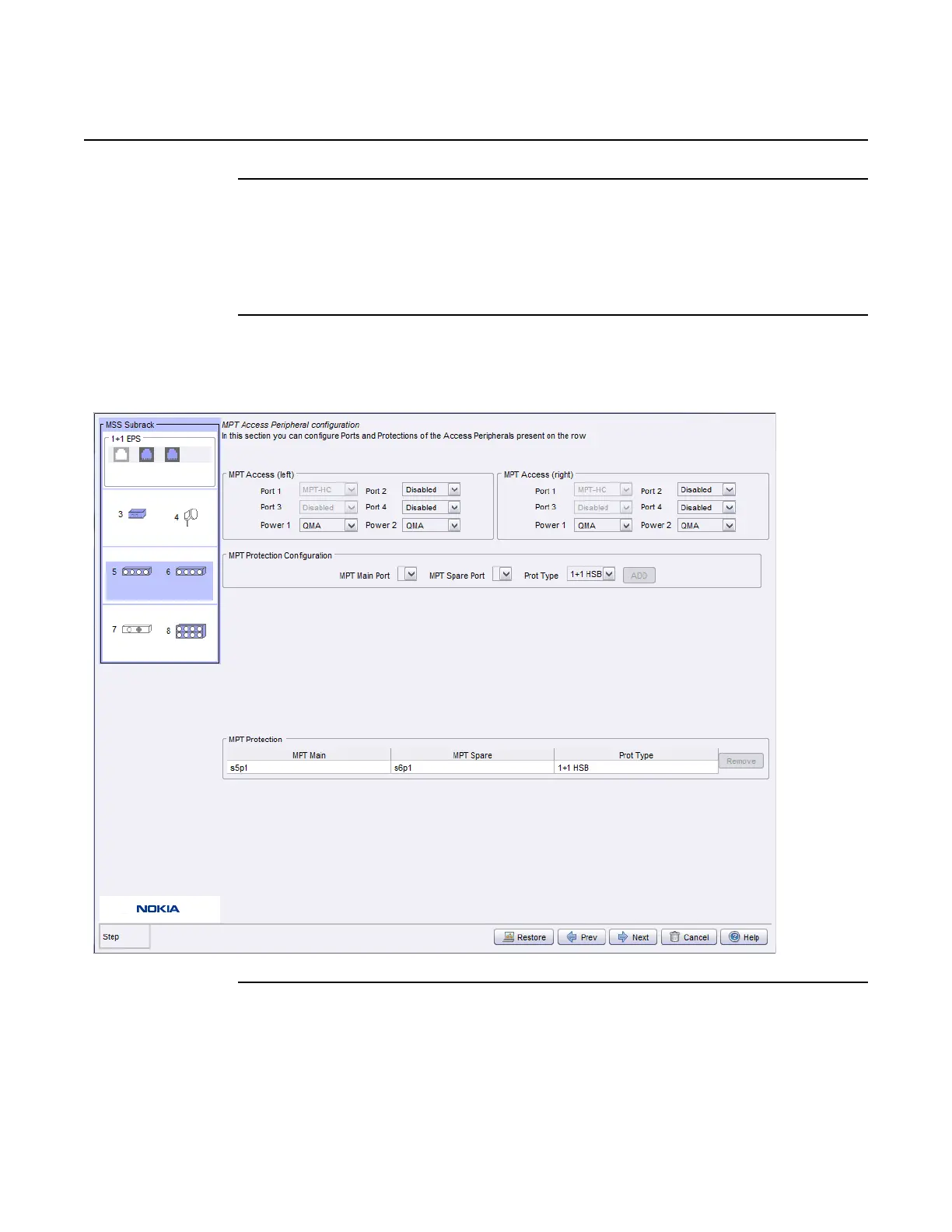

Figure 670 1+1 configuration with MPTACC units
5. For the 1+1 configuration the ports must be both electrical or optical (no mixed
configuration is allowed). The 1+1 configuration can be set up with two ports on
the same unit or on two different units.
