Provision equipment port

456

WebEML User Manual

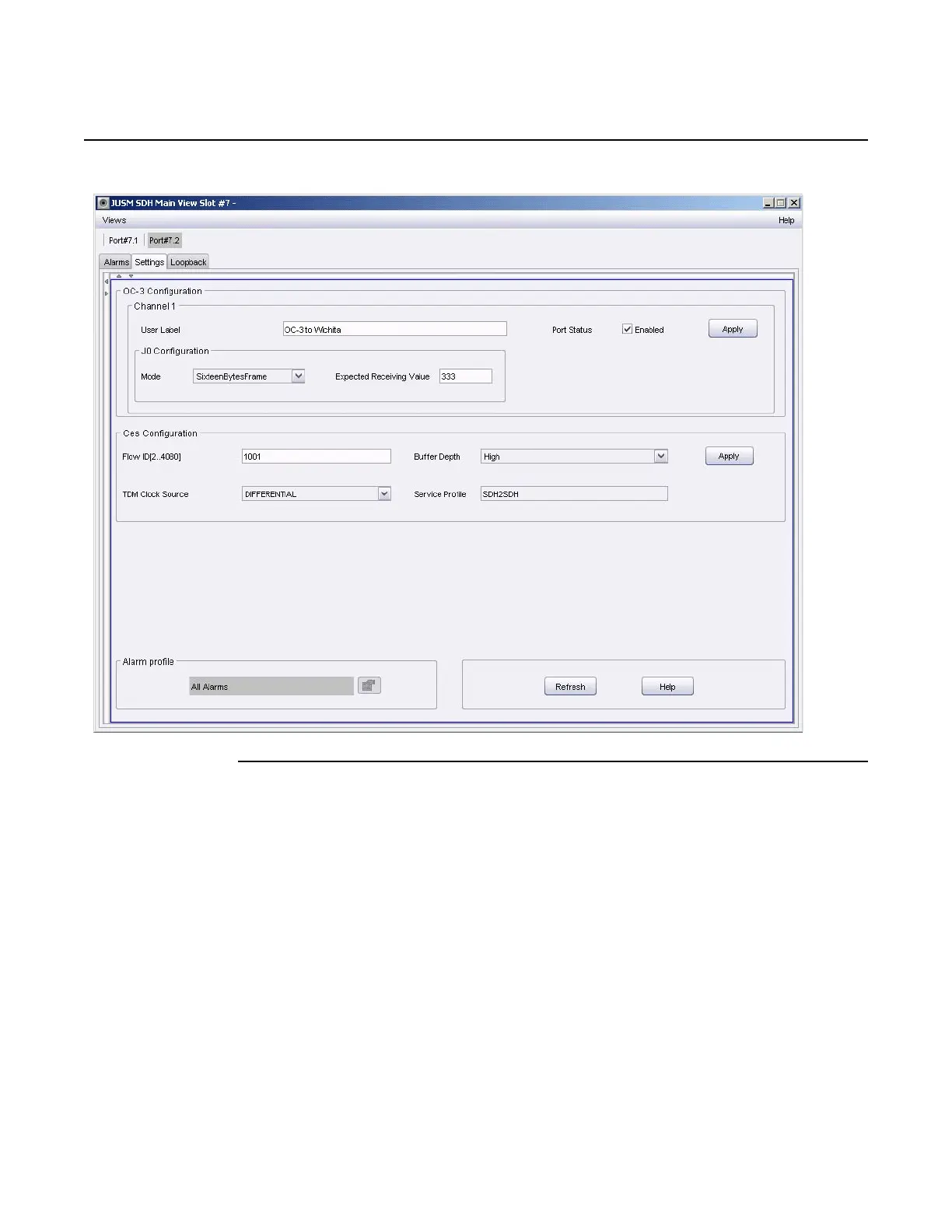

Figure 274 Provisioned SDHACC electrical OC-3 port

7. Provision STM-1 SDHCHANN port

Click on the SDHCHANN OC-3 card in the resource detail area.

The SDH Main View displays. See Figure 275.

Release 7.0.0 3DB 19286 ACAA Issue 01
