Nokia 9500 MPR - Figure 262 Resource List Area: P32 E1 DS1 Selected

WebEML User Manual Provision equipment port
443

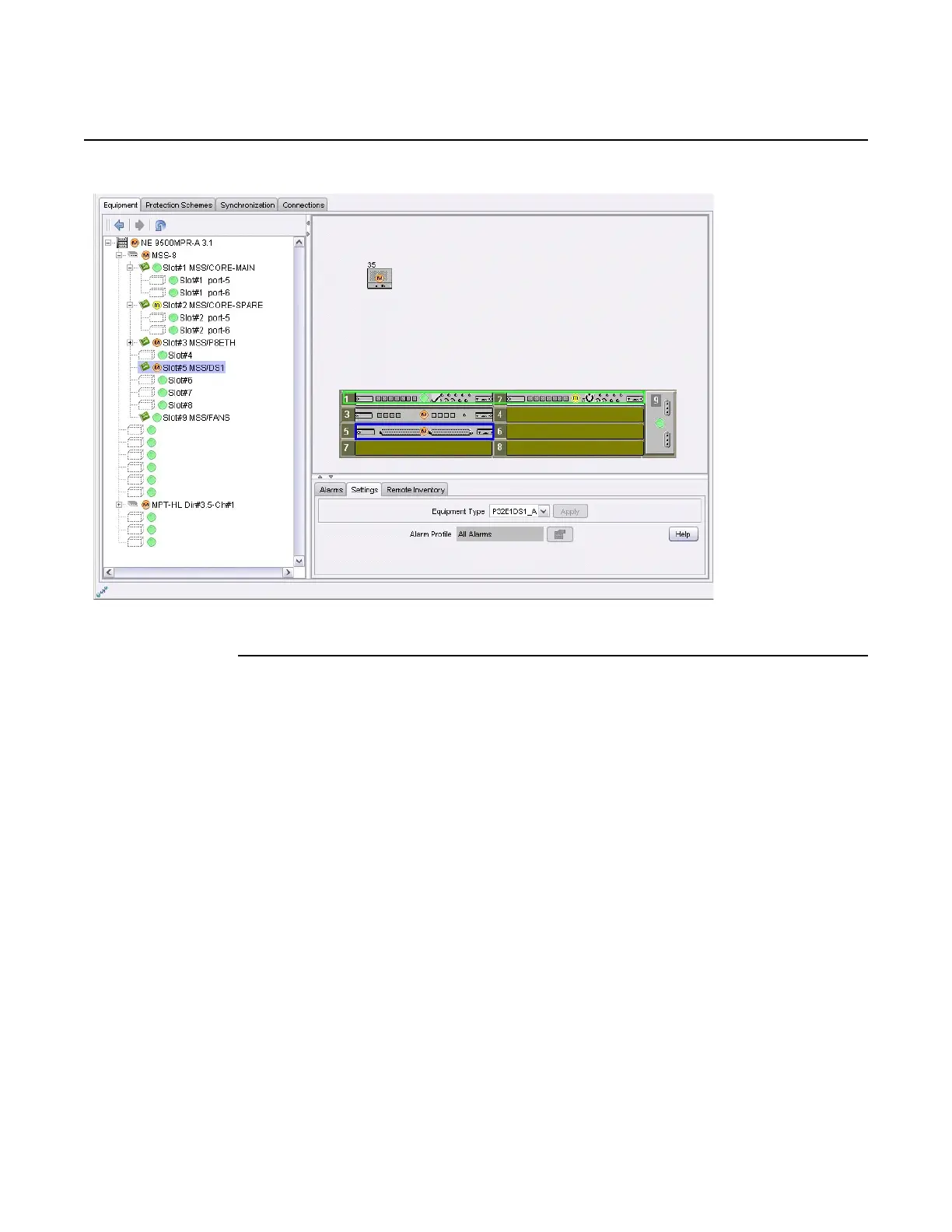

Figure 262 Resource list area: P32E1DS1 selected
The PDH Main View displays. See Figure 263.
2. Provision DS1 port using the following procedure:
a. Select Settings tab.
The Settings tab displays.
b. Select DS1 port#n to provision: 01 to 32 for a P32E1DS1 card or 01 to 16
for an MSS-1.
c. Configure a user label if needed.
d. From the Signal Mode drop-down menu, select signal mode type:
Unframed, Framed SF, or Framed ESF.
e. Select appropriate Line Coding radio button: AMI or B8ZS.
f. Enter the Line Length (distance to cross-connect): 0 to 655.
g. Enter the unique Flow ID number.
h. From the Service Profile drop-down menu, select service profile type,
TDM2TDM or TDM2Eth.
i. DS1 port service profile TDM2ETH?
a. If yes, go to step j.
b. If no, go to step m.
All ports on a DS1 card must be provisioned to the same method of
Release 7.0.0 3DB 19286 ACAA Issue 01
