Nokia 9500 MPR - Figure 652 MPT-HC 1+1 Settings Tab

Configure radio parameters
868
WebEML User Manual

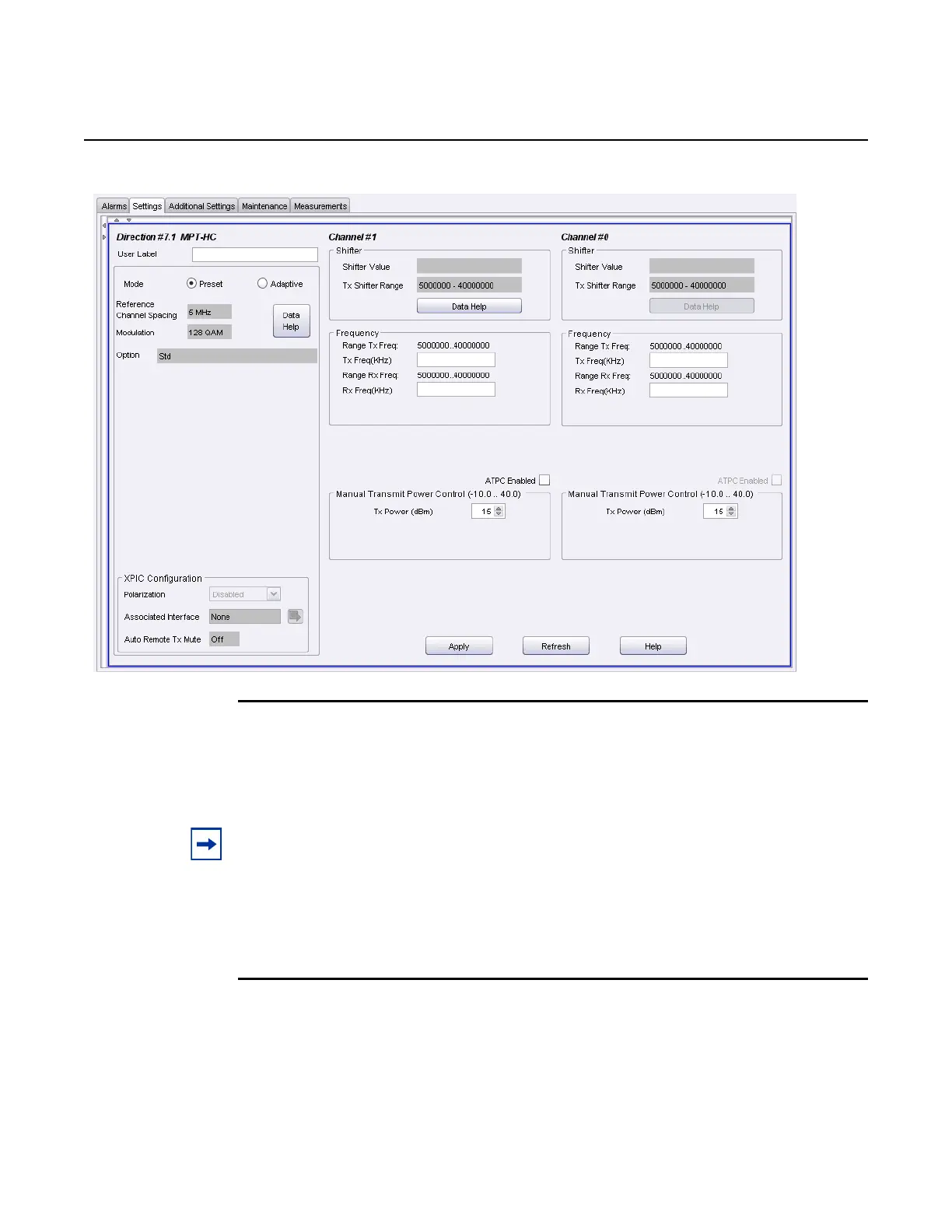

Figure 652 MPT-HC 1+1 Settings tab
46. Provision MPT ODU 1+1 spare radio channel:
i. Enter the TX Frequency within the allowed range.
ii. The Rx Freq (KHz) displays the Rx RF Frequency.
iii. Click Apply.
47. Select an action.
a. To Provision the MPT ODU Manual Transmit Power Level (RTPC), go to
step 48.
Note: The Channel #1 Rx Freq (KHz) field displays the Rx RF Frequency and is the result
of the following calculation:
RX Frequency = TX Frequency +/- Shifter Frequency (based on the high or low channel
selected)
