Disable equipment

542

WebEML User Manual

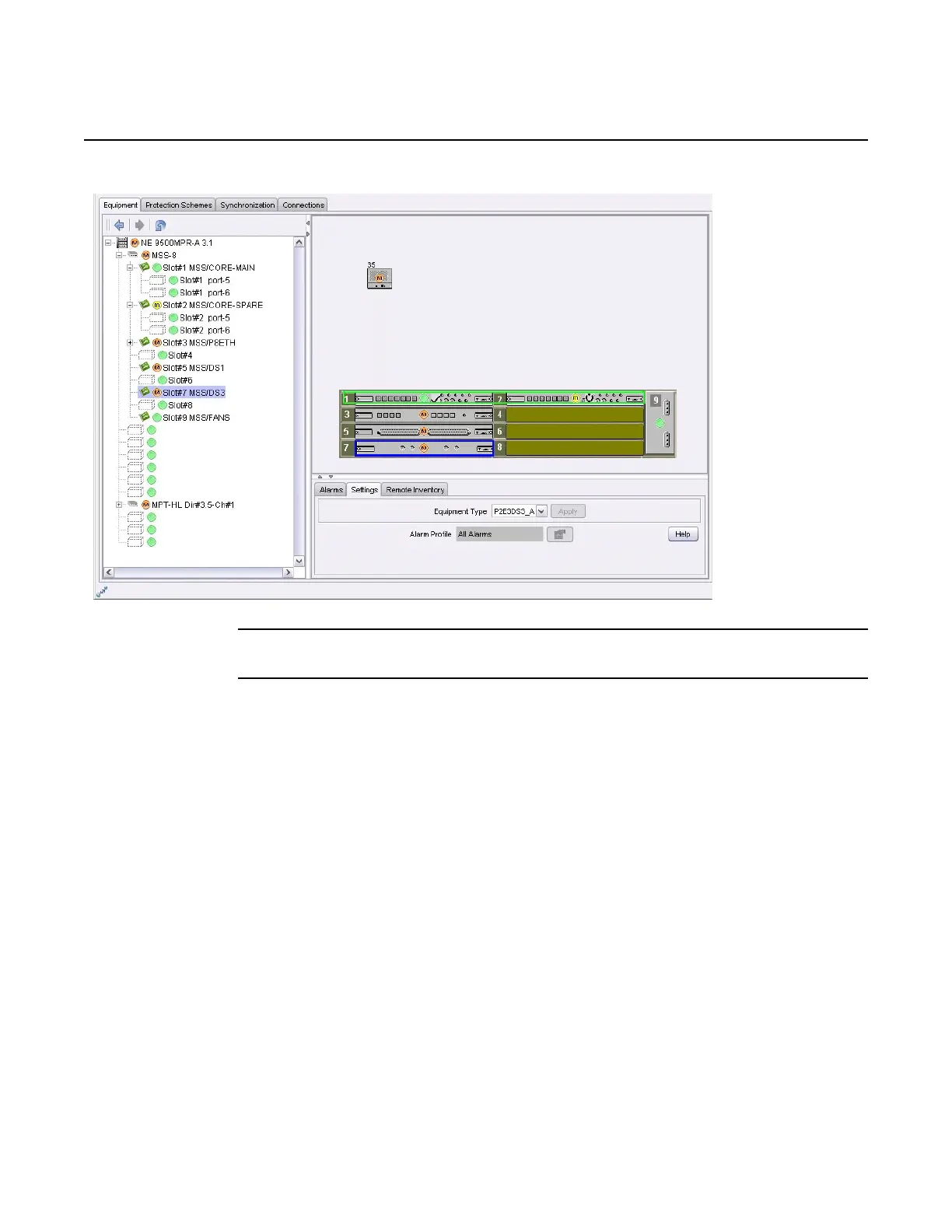

Figure 356 Enabled P2E3DS3

2. Click the Settings Tab in the resource detail area.

3. From the Equipment Type drop-down menu, select EMPTY. See Figure 357.

Release 7.0.0 3DB 19286 ACAA Issue 01
