Nokia 9500 MPR - Figure 666 Report Panel for Opened Configuration File

Use the Provisioning Tool
892
WebEML User Manual
After a configuration file is opened, a Report panel displays for the existing
file, see Figure 666.

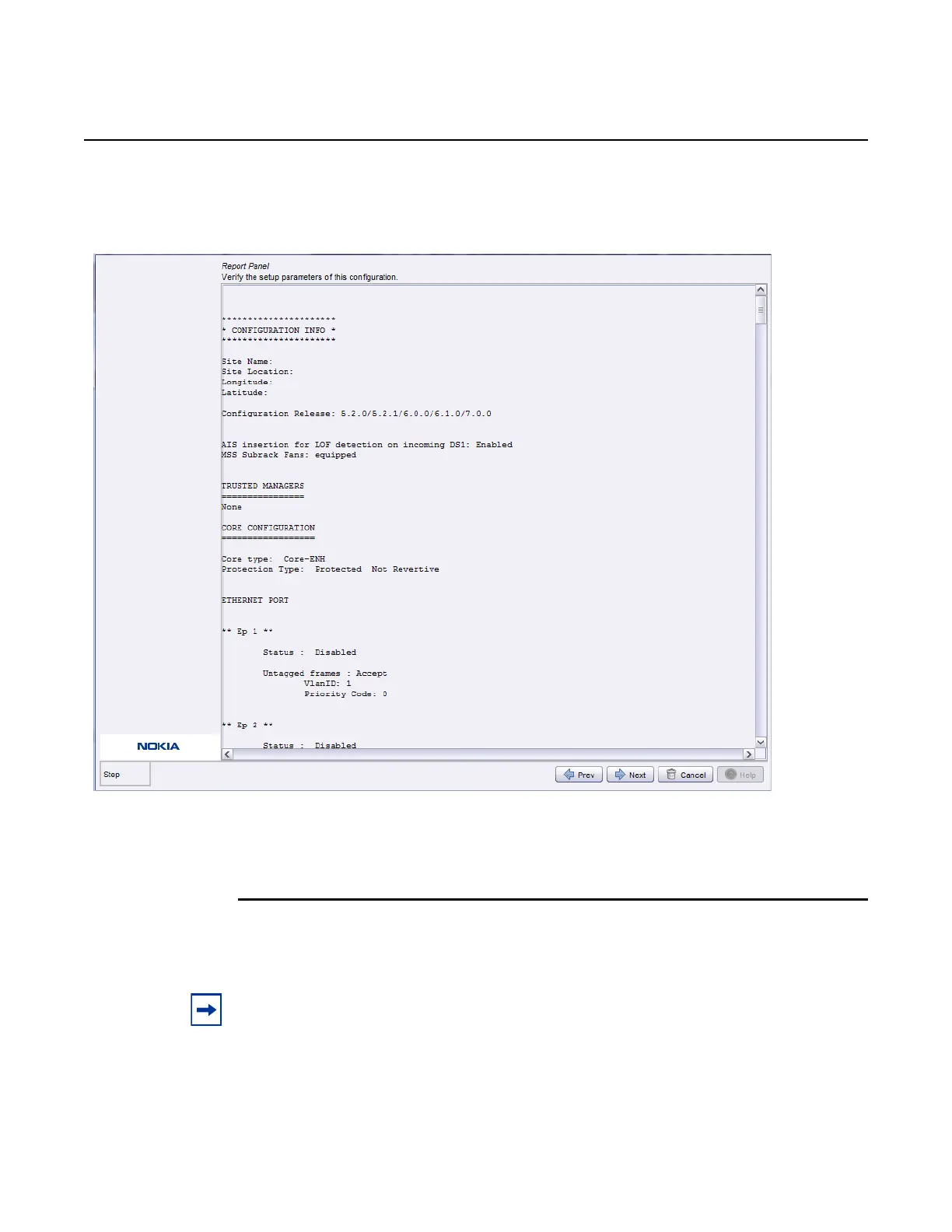

Figure 666 Report panel for opened configuration file
If the file is correct, click on the Next button to start the provisioning.
b. Click on the Create button to create a file in R5.2.0.
The MSS Configuration screen opens.
3. Select the card to be configured and protection options for each slot from the
drop-down menu. See Figure 667 for an example.
Note: Protection can be configured for the Core-E and P32E1DS1 units (the drop-down box
is not dimmed), but not for the MPT-ACC or EASv2 units.
Protection for MPT-HC, MPT-HQAM, or MPT-XP units on the Core-E must be configured
with WebEML.
Release 7.0.0 3DB 19286 ACAA Issue 01
