WebEML User Manual Use the Provisioning Tool
933

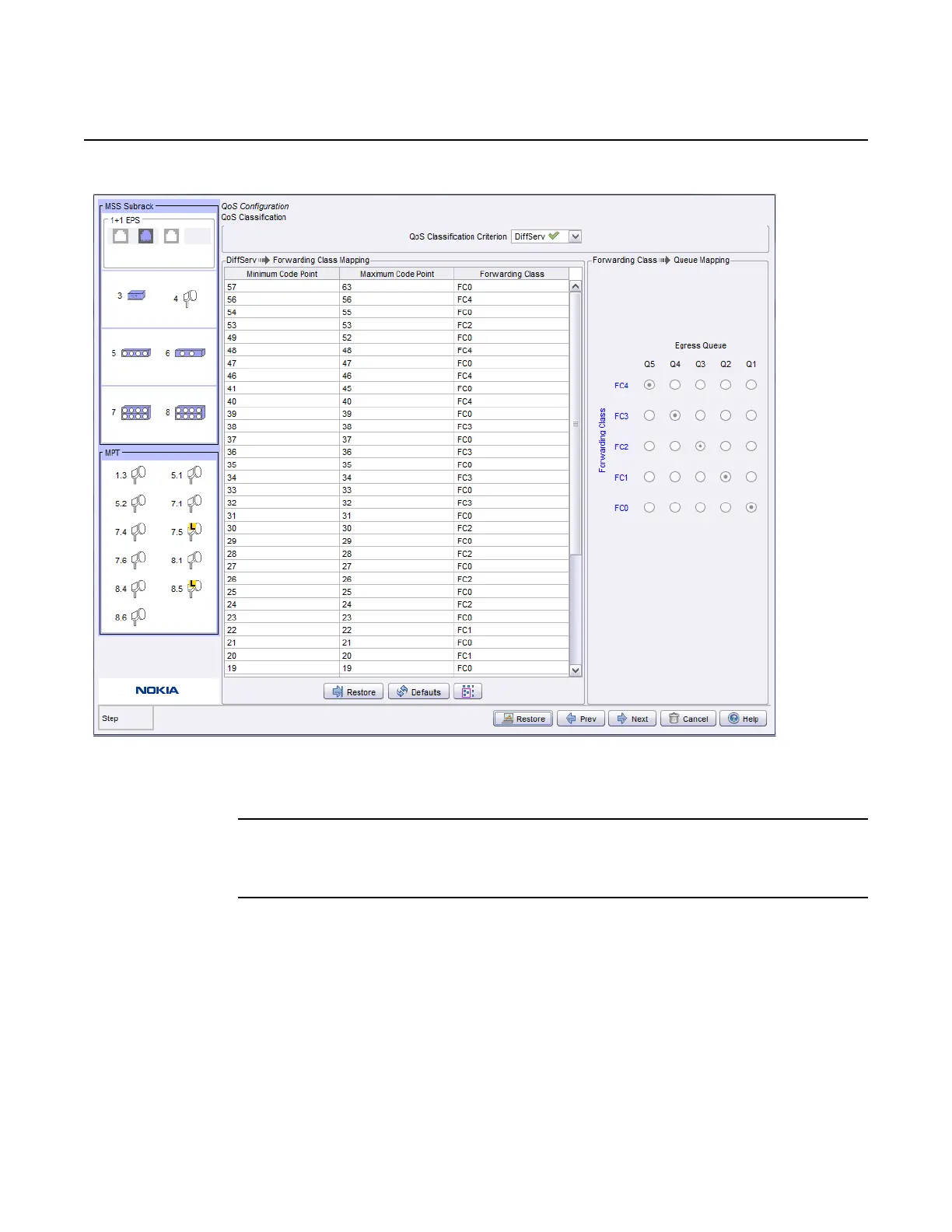

Figure 702 Read-only table
Click on the Table form (per point) button to close the table.
iii. Click on Next to complete the configuration.
7. Click on the Next button. The next screen to open depends on the configuration.
To configure the Bridge configuration screen
1. Choose the way to manage the Ethernet traffic using the provisioning tool:
− 802.1D (MAC Address Bridge), see Figure 703.
− 802.1Q (Virtual Bridge), see Figure 704. This is the default in the ANSI
market.
Release 7.0.0 3DB 19286 ACAA Issue 01
