WebEML User Manual Configure radio parameters

873

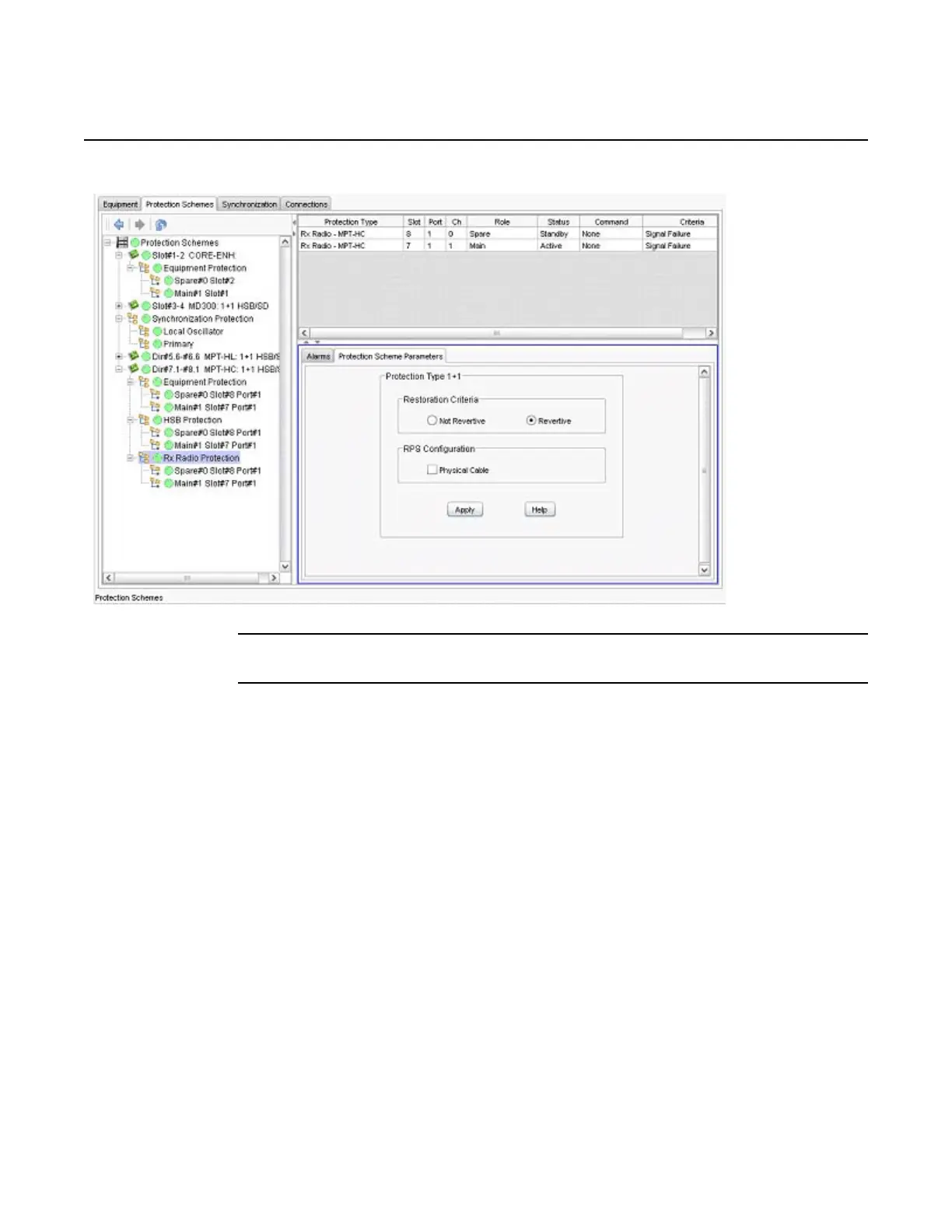

Figure 655 MPT ODU Protection Restoration Criteria provisioning Rx radio

65. Select the Equipment tab.

66. Provision the MPT ODU link identifier

Open the appropriate radio main view depending on your radio configuration

and select the Additional Settings tab; see Figure 656.

Release 7.0.0 3DB 19286 ACAA Issue 01
