Administer external alarm points on an Auxiliary
card
114
WebEML User Manual
The AUX Main View window opens.
3. Click the External Points tab.
4. Click the Settings tab. See Figure 33.

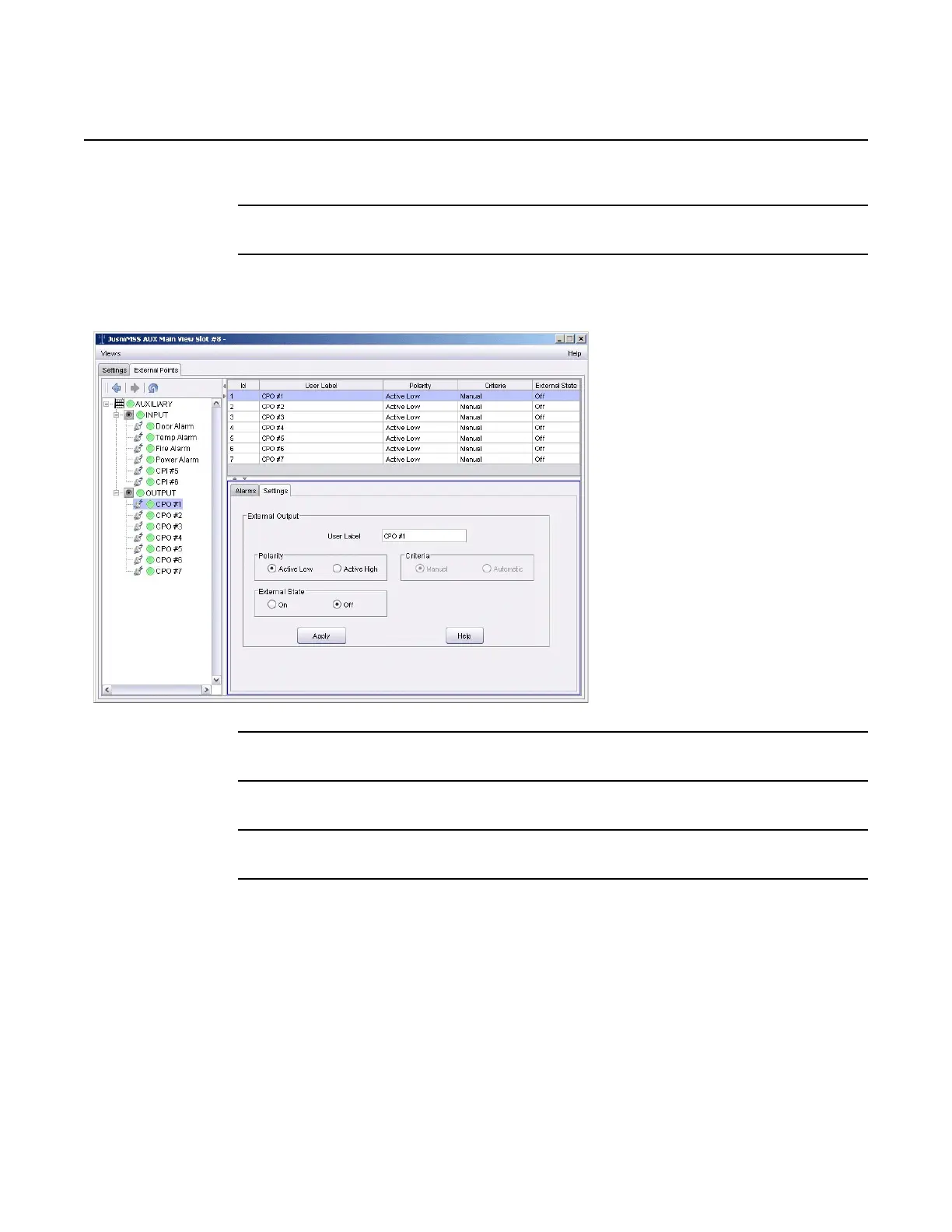

Figure 33 External Alarm Output setting tab
5. Select CPO#[1-7] in the resource tree area.
6. In the User Label field, enter the alarm input label.
7. Select the External output Polarity radio button, Active Low or Active High.
8. Click Apply.
The External Points Resource List Table updates. See Figure 34.
