Nokia 9500 MPR - Figure 609 Provisioned MPT-HLC 1+1 Horizontal XPIC Radio Channel

Configure radio parameters
808
WebEML User Manual
c. From the Option drop-down menu, choose gain configuration (Std/XPIC).
d. Click Apply.
e. Provision Horizontal radio channel XPIC Configuration Polarization to
Horizontal.
f. Click Apply.

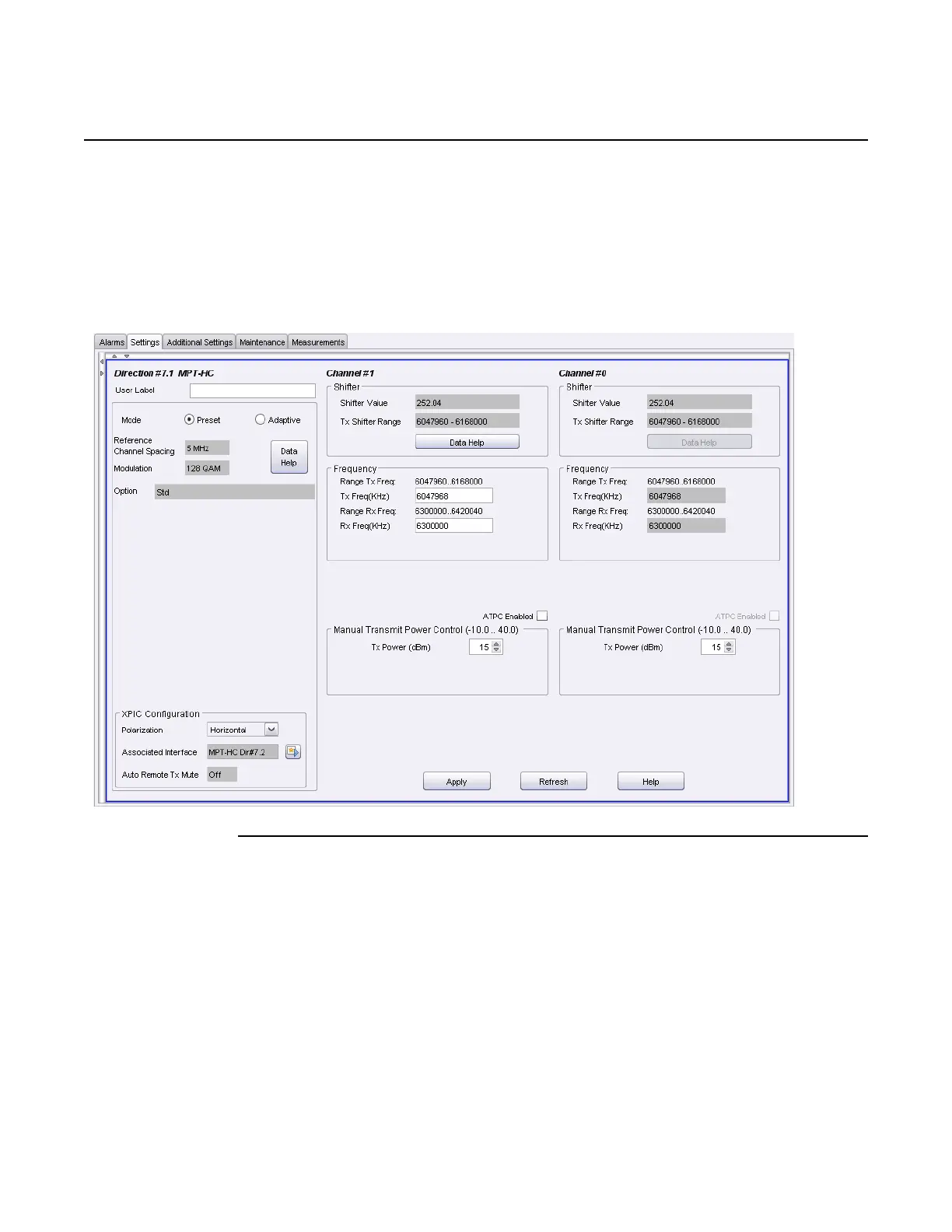

Figure 609 Provisioned MPT-HLC 1+1 Horizontal XPIC radio channel
15. Configure MPT-HLC Vertical XPIC 1+1 HSB:
i. Provision 1+1 HSB protection group. See step 24 for detailed steps to
provision radio channel protection type.
ii. Provision main Vertical radio channel. Provision the Vertical radio channel
using the following radio parameters identical to the values provisioned for
the horizontal radio channel (step 14 i).
• Mode
• Reference Channel Spacing
• Modulation
• Shifter
