Nokia 9500 MPR - Figure 374 Disable MPTACC

To Next Page

To Previous Page

Disable equipment

560

WebEML User Manual

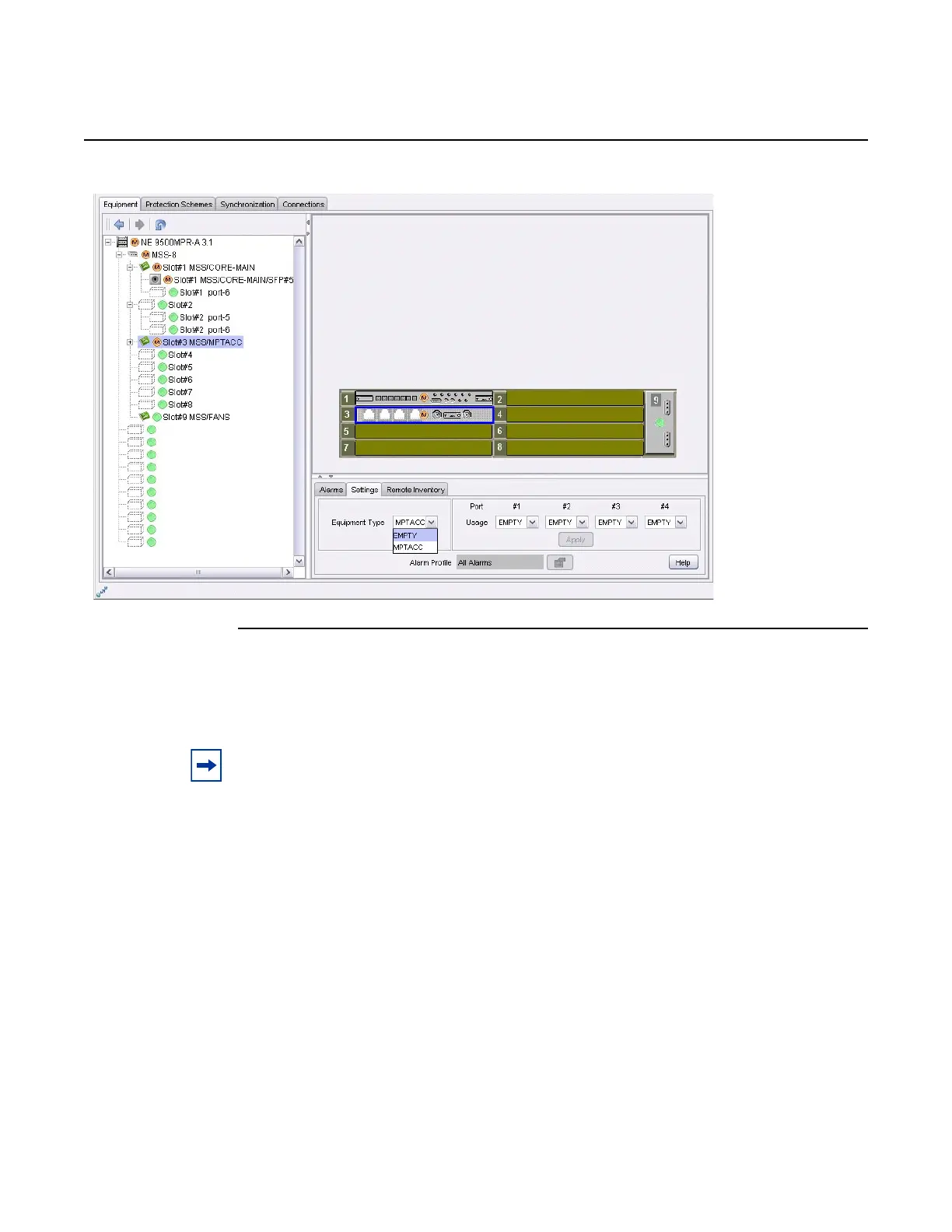

Figure 374 Disable MPTACC

4. Click Apply.

The MPT Access card disabled will be removed from the selected slot #. See

Figure 375.

Note: MPT Access Card will not be disabled if the card has cross-connects and/or

equipment ports associated.

Release 7.0.0 3DB 19286 ACAA Issue 01
