Provision Ethernet ports
414
WebEML User Manual

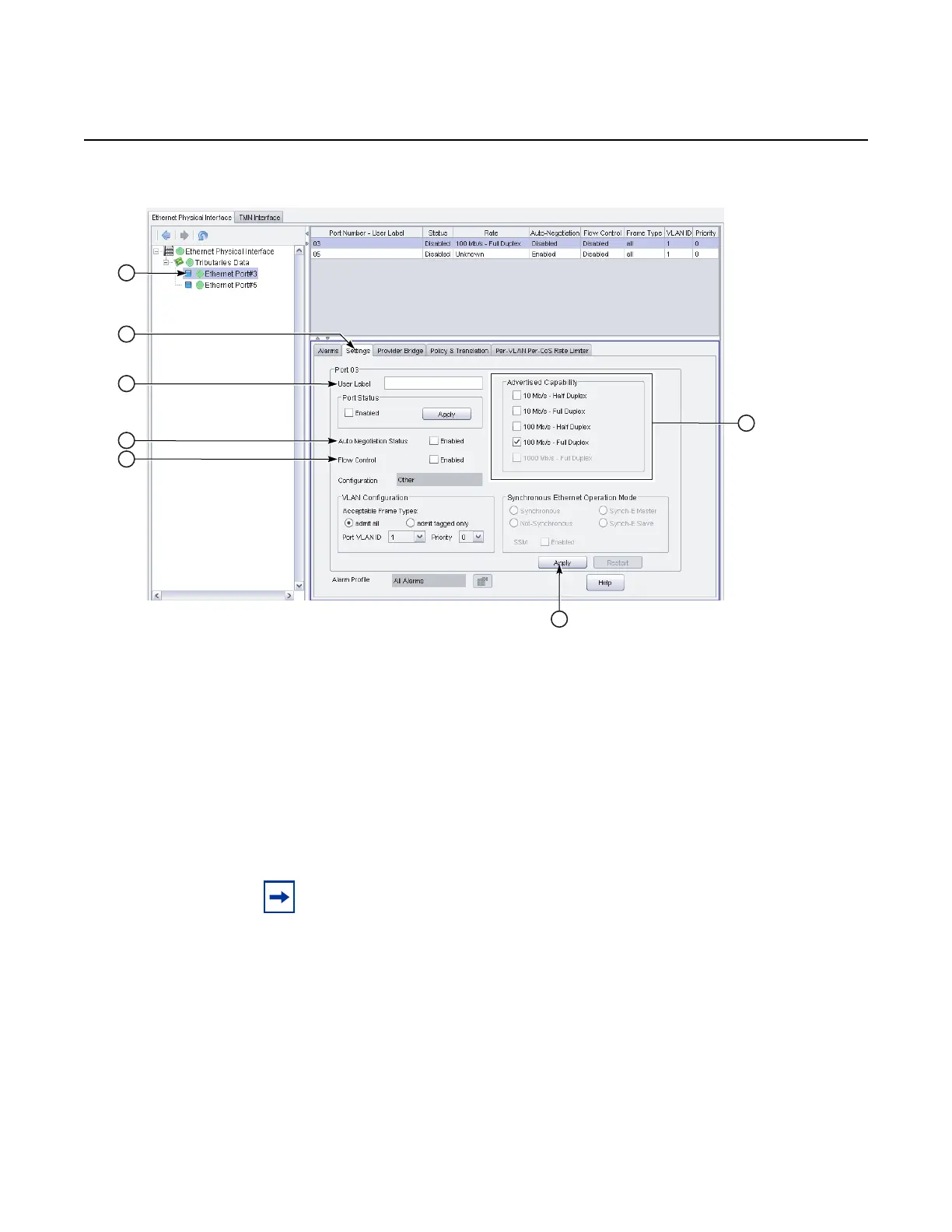

Figure 239 Provision Core/EAS/MSS-O Ethernet physical interface
a. Select Ethernet Port#n to provision (Ethernet Port #1/#8).
b. Select Settings tab.
c. Configure a user port label if needed.
d. Select Auto Negotiation Status: enabled (checked) or disabled
(unchecked).
For 10 Gb/s on CorEvo-10G, Auto Negotiation must be disabled.
e. Select Flow Control Enabled: enabled (checked) or disabled (unchecked).
f. For electrical Ethernet ports, select all Advertised Capability that apply.
Note: For electrical Ethernet Ports, available advertised capabilities for the port
are dependent upon the Auto Negotiation Status selected. When Auto
Negotiation is disabled, only one speed and capability is allowed. Additionally,
only 10 or 100 Mb/s, half or full duplex, speed and capability are supported. Half
duplex is not available with the CorEvo card.
When Auto Negotiation is enabled, all five speed and capabilities are supported
(10 and 100 Mb/s, half or full duplex, and/or 1000 Mb/s full duplex).
