Nokia 9500 MPR - Figure 376 Enabled Auxiliary Card

To Next Page

To Previous Page

Disable equipment

562

WebEML User Manual

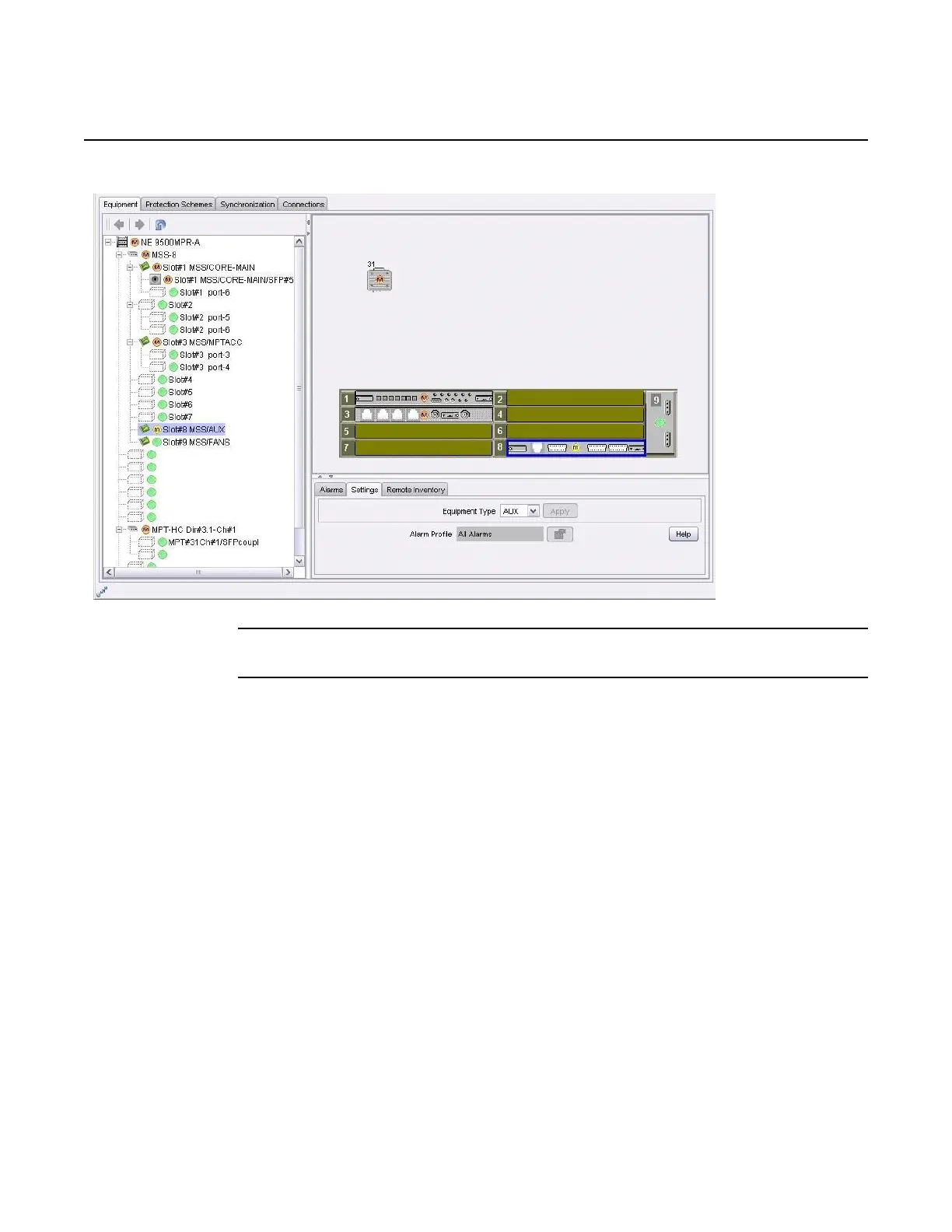

Figure 376 Enabled auxiliary card

2. Click the Settings Tab in the resource detail area.

3. From the Equipment Type drop-down menu, select EMPTY. See Figure 377.

Release 7.0.0 3DB 19286 ACAA Issue 01
