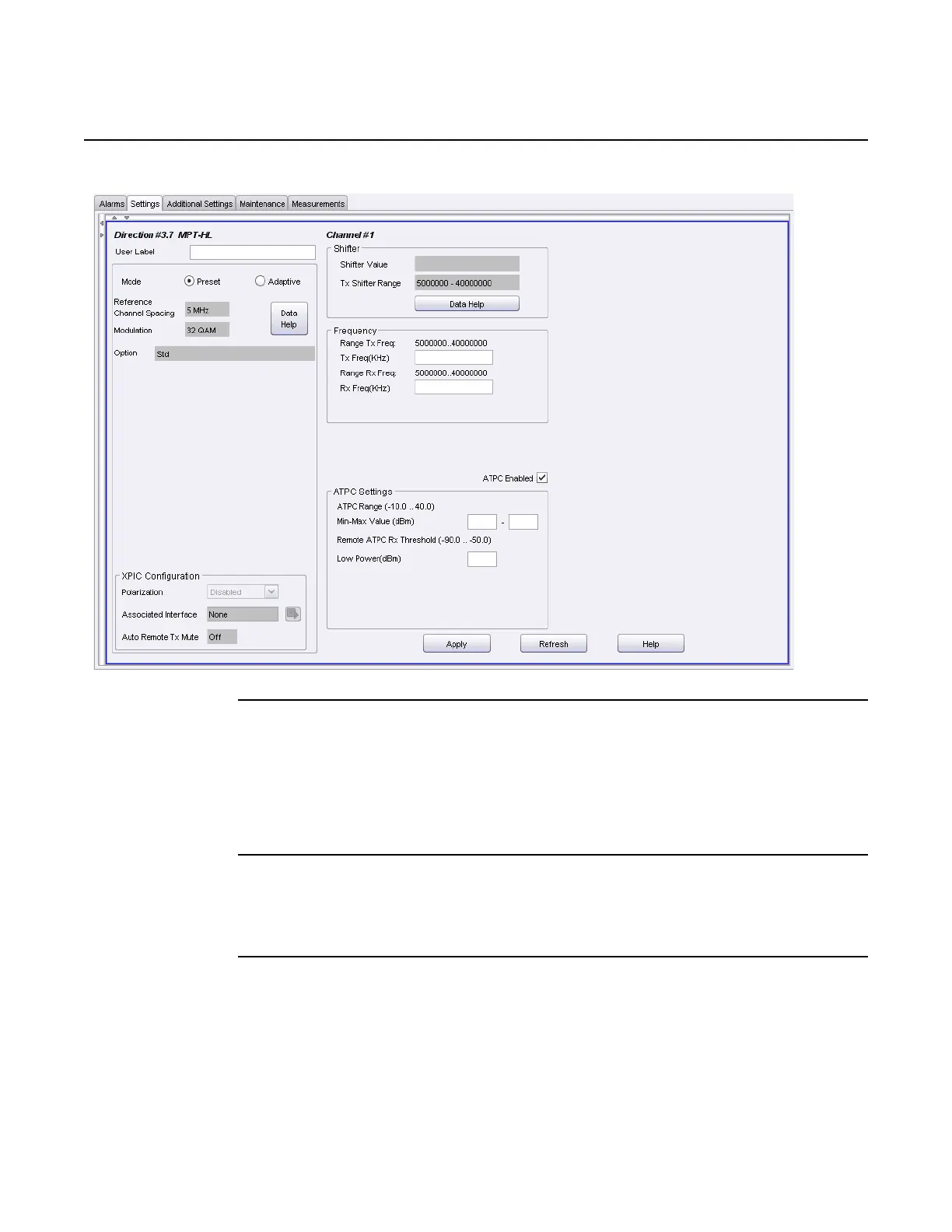

Figure 617 MPT-HLC settings with ATPC
44. Provision MPT-HLC radio channel ATPC:
i. Select the ATPC Enabled check box.
ii. Enter the Min-Max transmit power value range (dBm).
iii. Enter the Remote ATPC Rx Threshold (-min / -max dBm).
iv. Click Apply.
45. Select an action.
a. To Provision the spare MPT-HLC ATPC, go to step 47.
b. To Provision the MPT-HLC radio protection scheme, go to step 48.
46. Provision the spare MPT-HLC ATPC
Open the appropriate radio main view depending on your radio configuration
and select the Settings tab; see Figure 617 for an example of the ATPC
parameters.
