Nokia 9500 MPR - Figure 447 Node I to NE E: Pass-Through Cross-Connection on Node D

WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
637

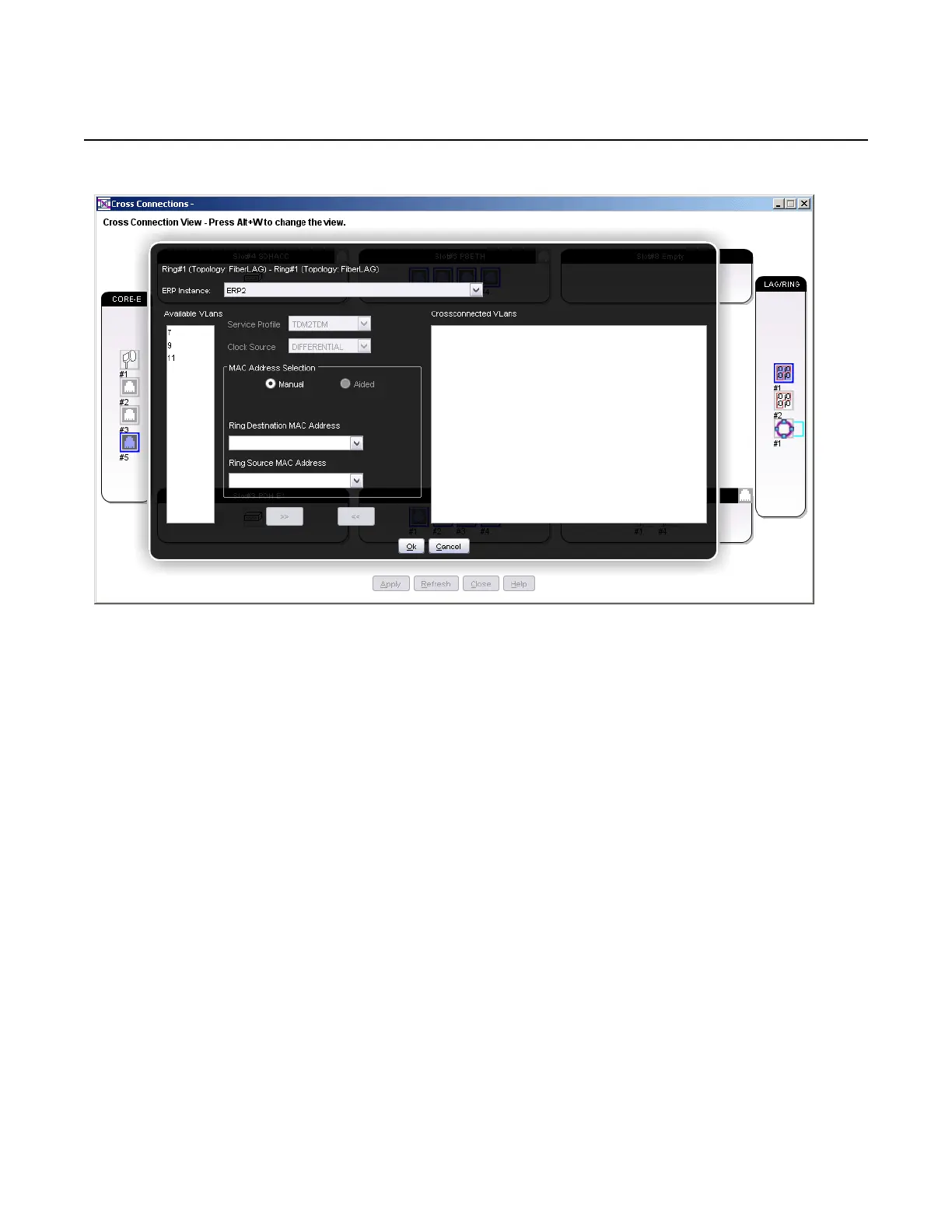

Figure 447 Node I to NE E: pass-through cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: NE E Unicast MAC address
e. Enter the Ring Source MAC address: Node D Unicast MAC address
To provision a cross-connection between Node I and NE E (protected)
• One traffic end point is connected using Ethernet to the fiber chain. That end
point (on NE E), is protected, see Figure 448.
