Nokia 9500 MPR - Figure 44 9500 MPR Equipment Tab: Core-E Card Selected

To Next Page

To Previous Page

Administer network configuration

134

WebEML User Manual

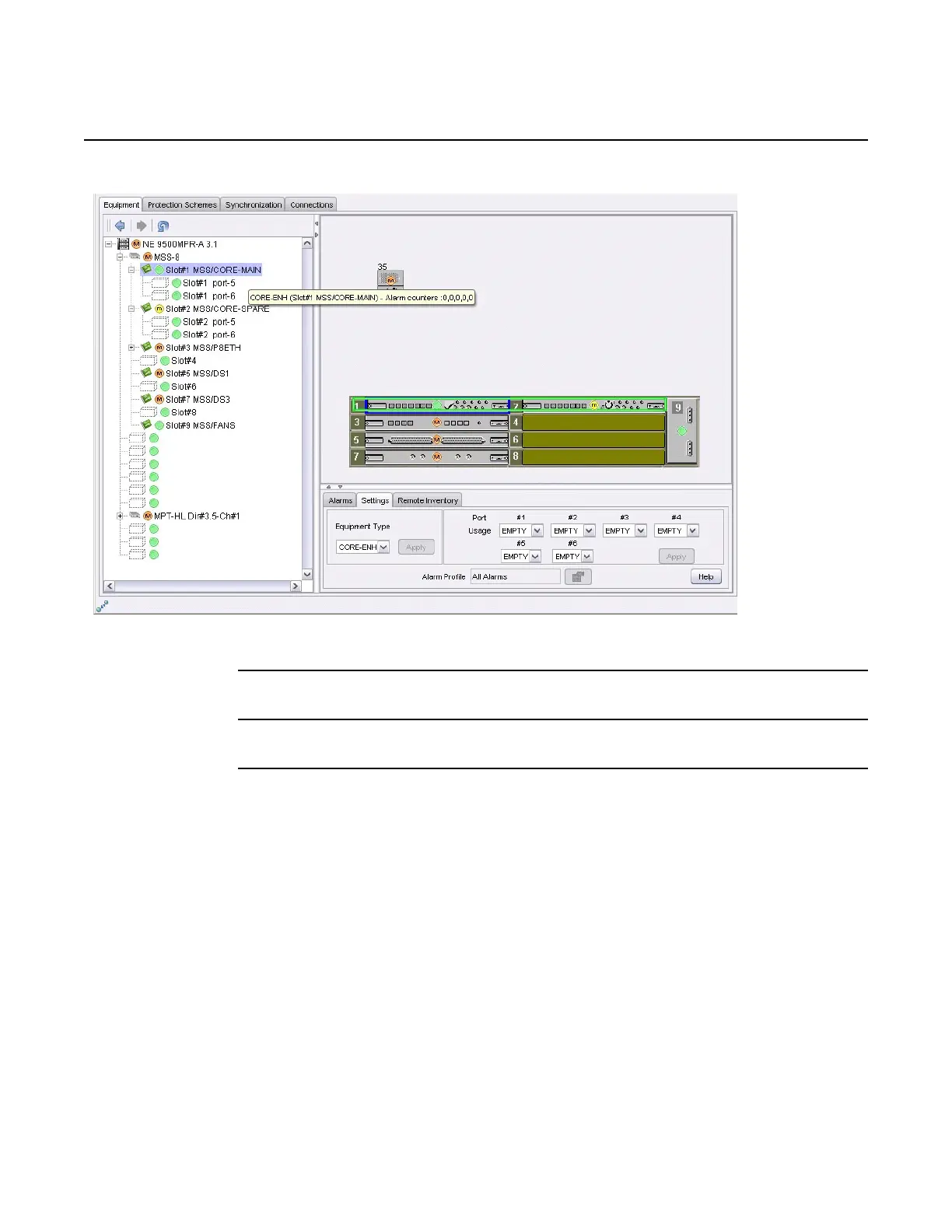

Figure 44 9500 MPR Equipment tab: Core-E card selected

CORE Main View Slot#1 displays.

3. Select TMN Interface tab.

4. Select TMN Ethernet in the resource tree area.

5. Select Settings tab. See Figure 45.
