Nokia 9500 MPR - Figure 371 Disable MPT-HC ODU on P8 ETH

To Next Page

To Previous Page

WebEML User Manual Disable equipment

557

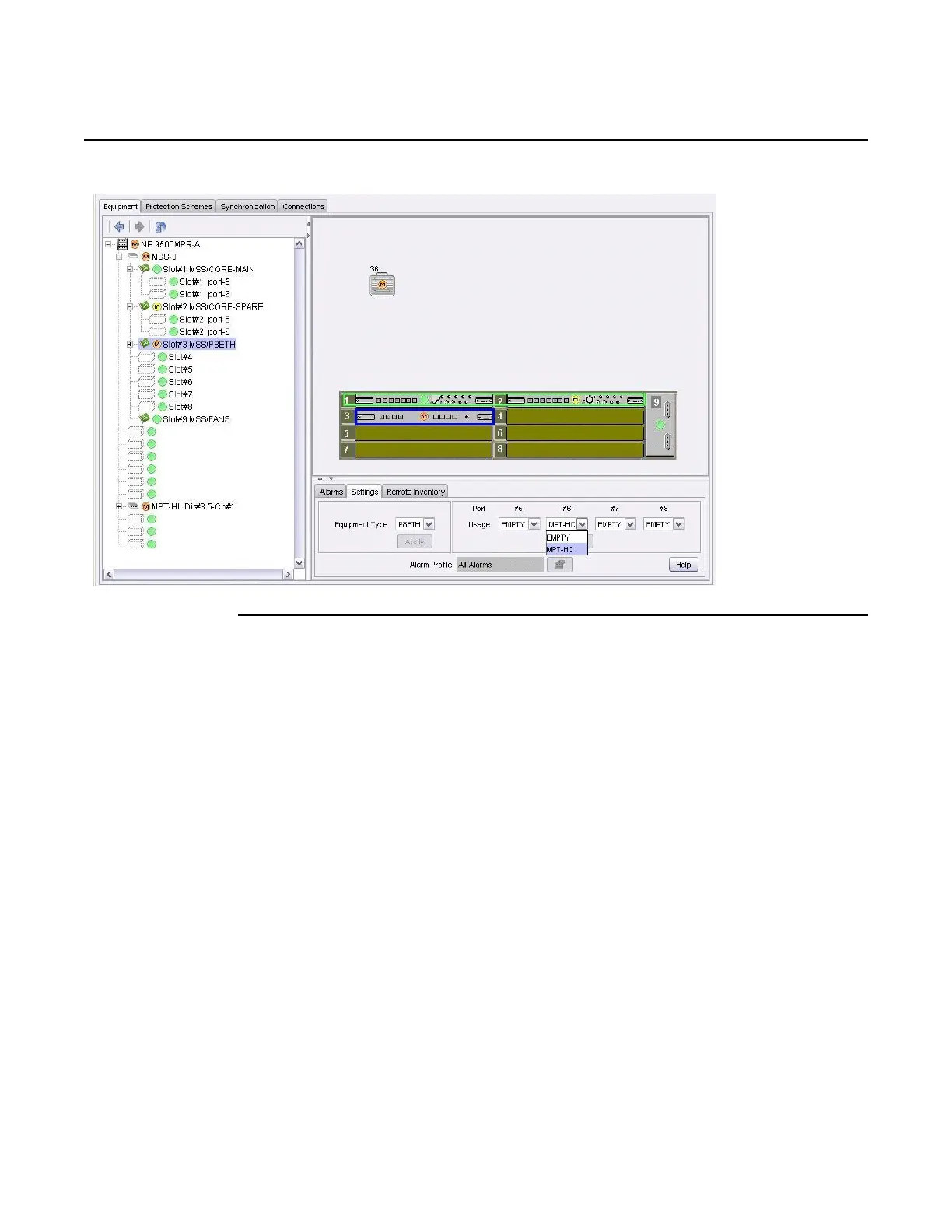

Figure 371 Disable MPT-HC ODU on P8ETH

4. Click Apply.

The port # will display Empty and the MPT ODU is removed from the resource

list area. See Figure 372.

Release 7.0.0 3DB 19286 ACAA Issue 01
