1. Verify port segregation provisioning. Port segregation should be provisioned
between parallel radio paths at both ends when they exist on the NE. Also port
segregation should be provisioned between the Ethernet port and other Ethernet
and/or radio ports where connectivity is not desirable. See Provision port
segregation/connectivity for detailed steps to view/provision port segregation.
2. Select PDH port and drag to draw line to ETH port.
PDH-ETH pop-up displays. See Figure 200.

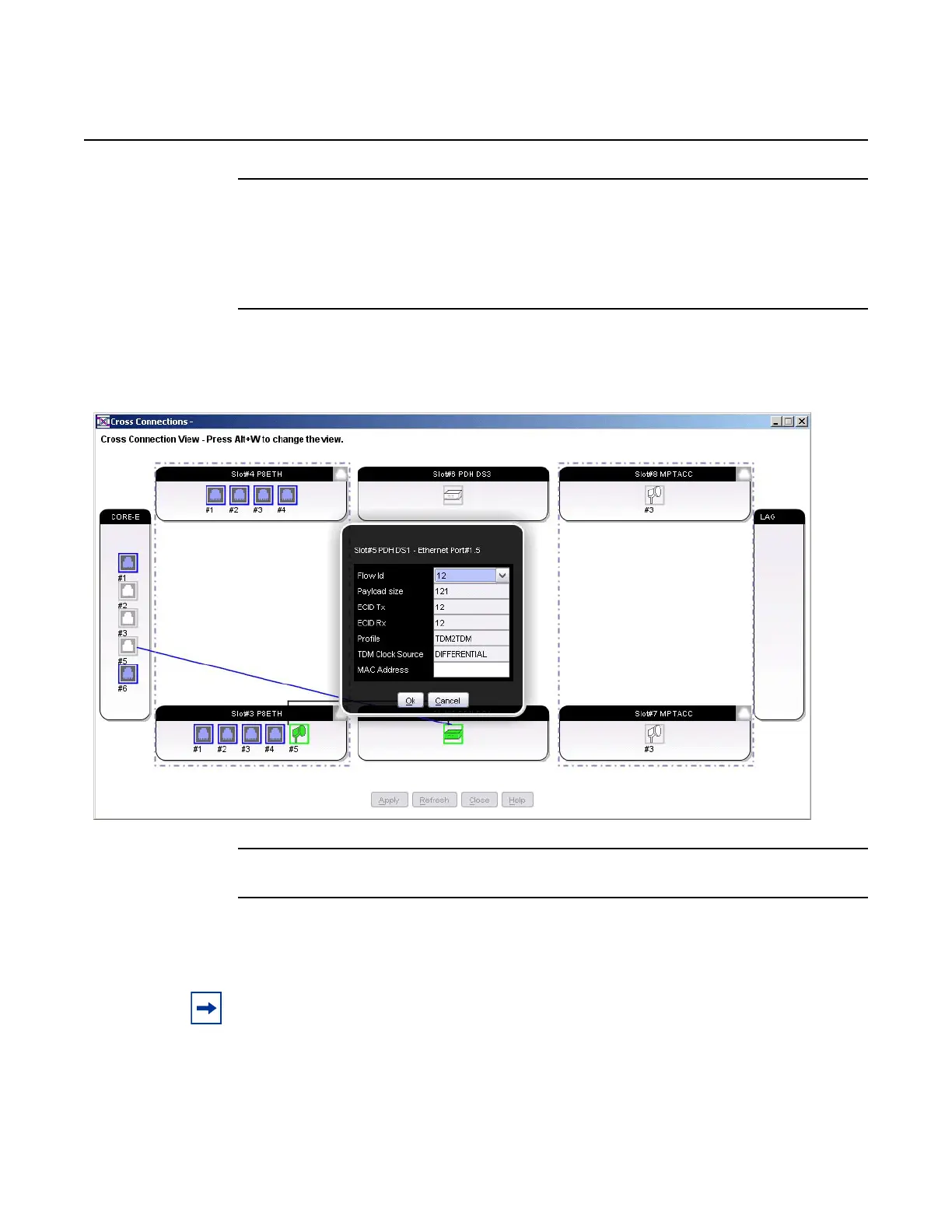

Figure 200 PDH to Ethernet Cross Connection
3. On the PDH-Eth pop-up, select Flow ID number from Flow ID drop-down list.
4. Enter the destination MAC address where the PDH will be terminated in the
MAC Address field.
Note: The first two digits of the destination MAC address for unprotected ports must be set
to ‘unicast’ or ‘00’. The first two digits of the destination MAC address for 1+1 protected and
L1 LAG ports must be set to ‘multicast’ or ‘01’. The first two digits of the destination MAC
address for all ERPS ring nodes must be set to ‘unicast’ or ‘00’
