Nokia 9500 MPR - Figure 620 MPT-HLC Maintenance Tab

WebEML User Manual Configure radio parameters
825

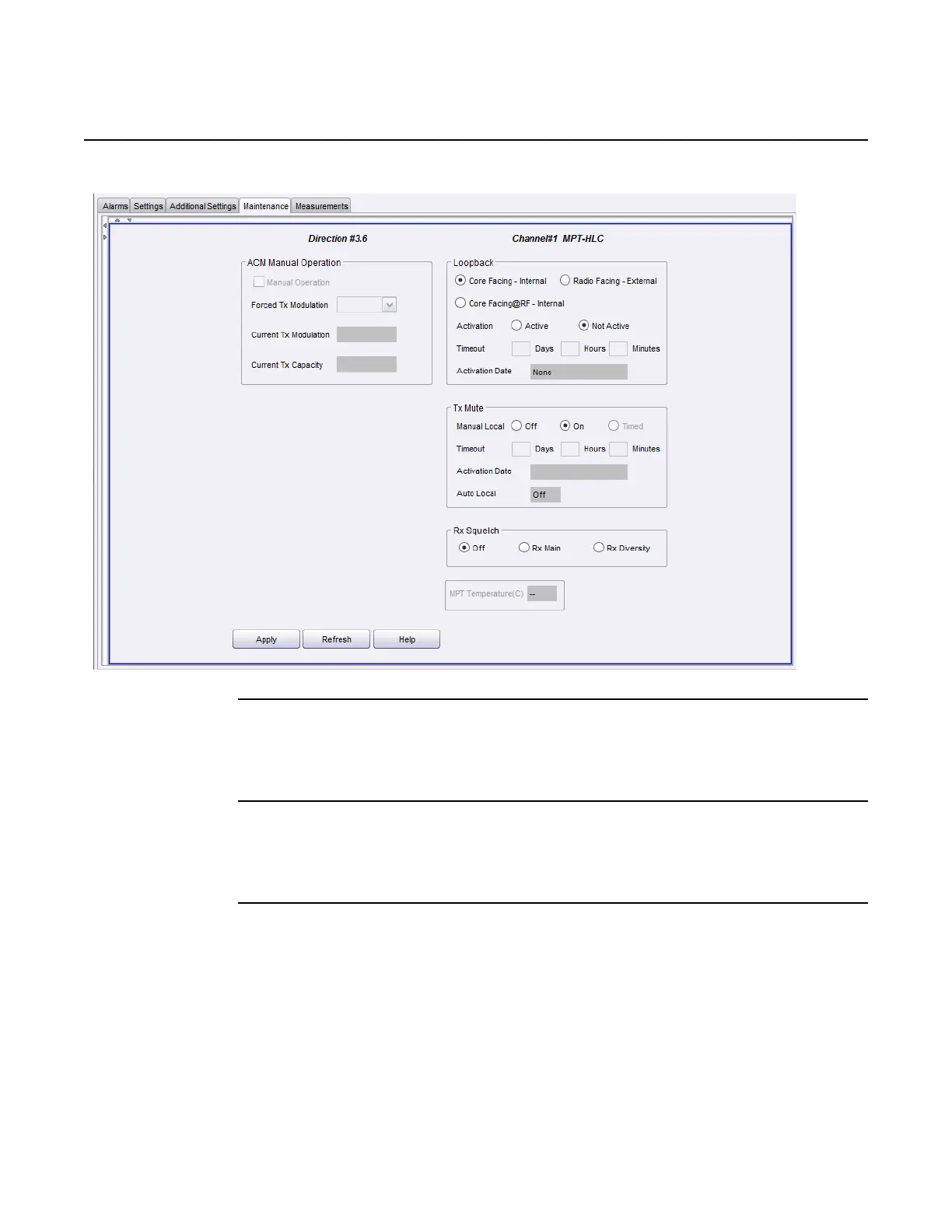

Figure 620 MPT-HLC Maintenance tab
69. Squelch the main or diversity receiver:
i. Select the Rx Main or Rx Diversity check box.
ii. Click Apply.
70. Release squelch on the main or diversity receiver:
i. Select the Rx Main or Rx Diversity check box.
ii. Click Apply.
71. Configure the branching loss
Open the appropriate radio main view depending on your configuration and
select the Measurements tab; see Figure 621.
Release 7.0.0 3DB 19286 ACAA Issue 01
