Provision cross connections in a mixed fiber/
microwave Ring
606
WebEML User Manual

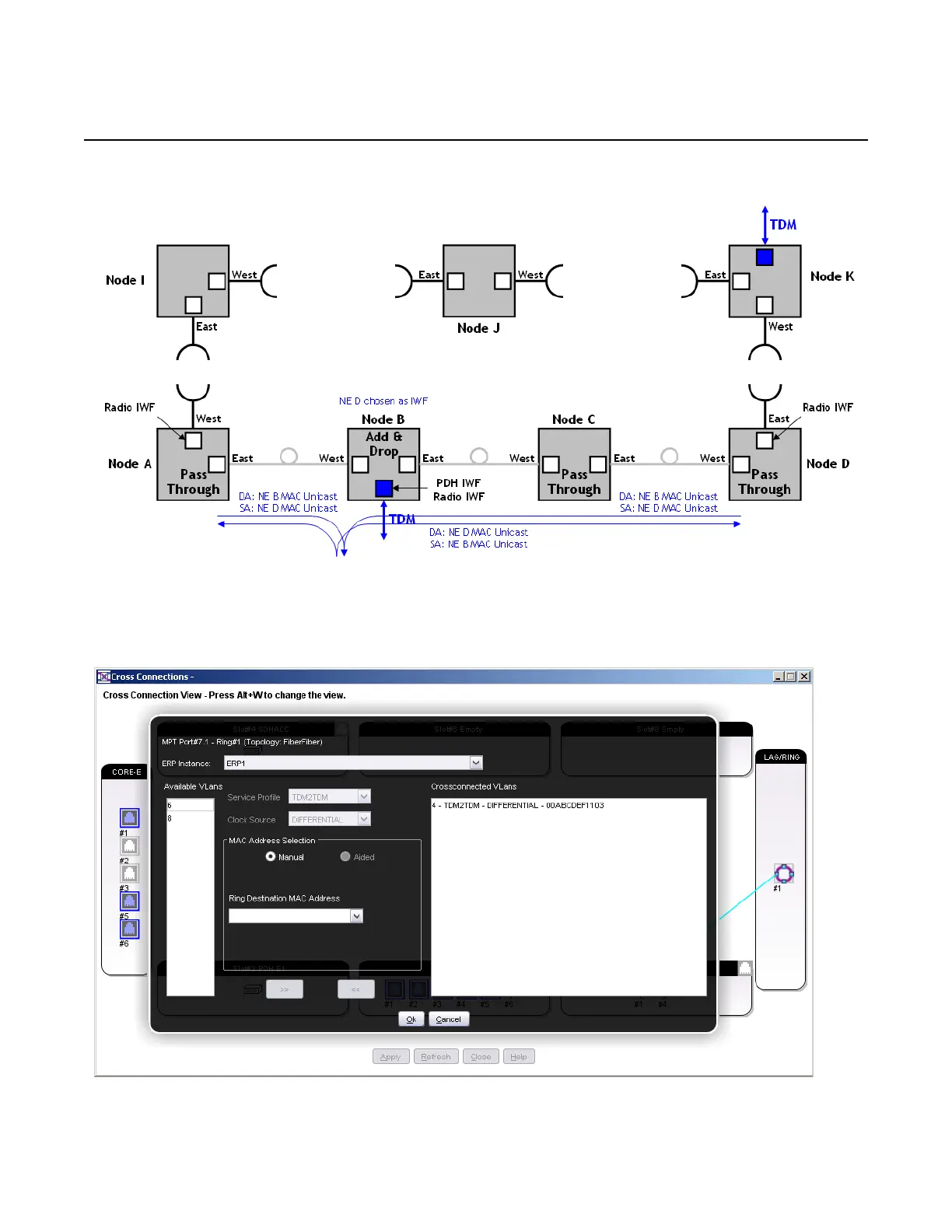

Figure 415 Cross-connection between Node K and Node B
Configure a Radio-Ring or PDH-Ring cross-connection on Node B, see
Figure 416 and Figure 417.
Figure 416 Node K to Node B: Radio-Ring cross-connection on Node B
Release 7.0.0 3DB 19286 ACAA Issue 01
