Nokia 9500 MPR - Figure 643 Provisioned MPT ODU 1+1 Horizontal XPIC Radio Channel

Configure radio parameters
858
WebEML User Manual
25. Click Close.
26. From the MPT Main View, select the Horizontal radio channel and verify the
correct radio channel is shown for the Associated Interface Vertical radio
channel. See Figure 643 for an example of a Provisioned Horizontal XPIC radio
channel.

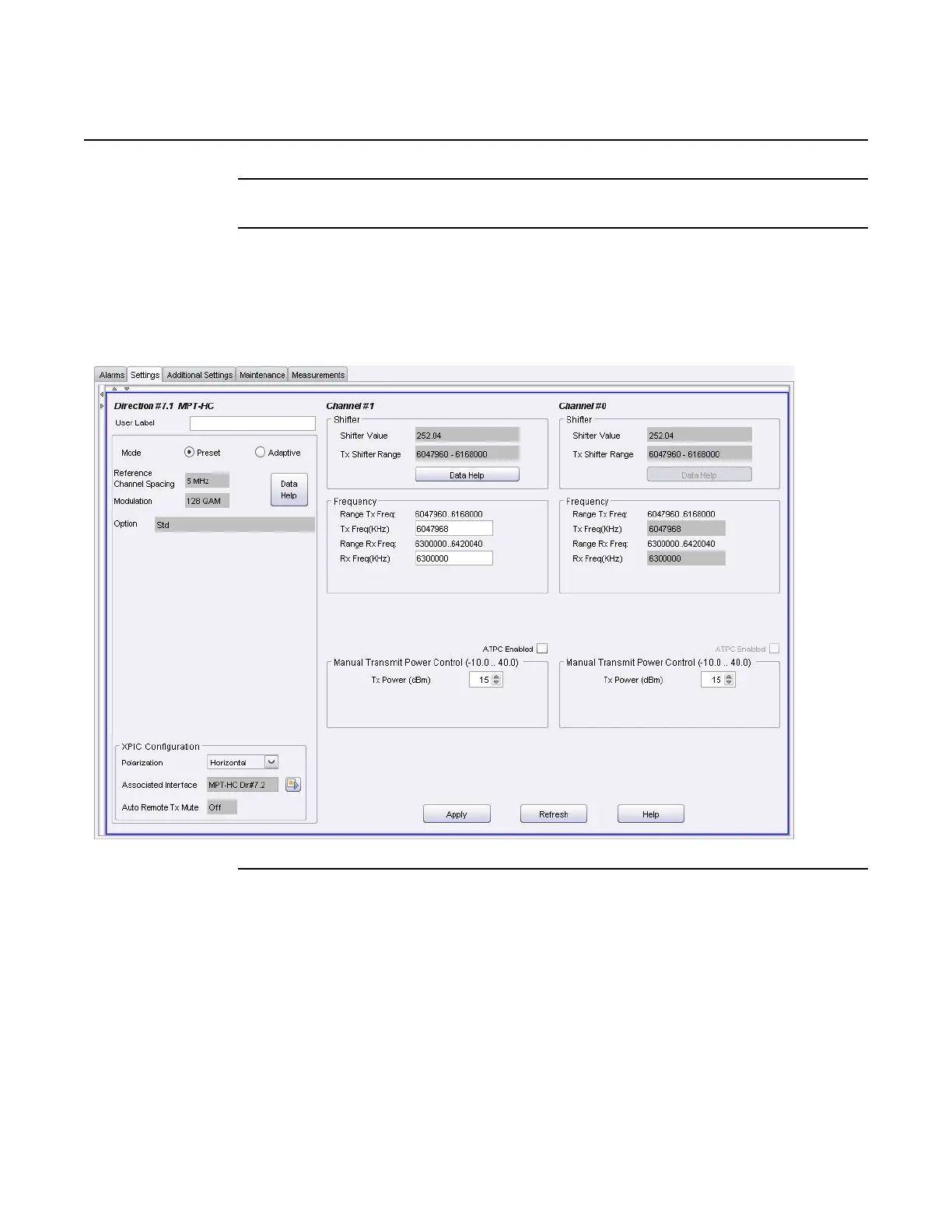

Figure 643 Provisioned MPT ODU 1+1 Horizontal XPIC radio channel
27. From the MPT Main View, select the Vertical radio channel and verify the correct
radio channel is shown for Associated Interface Horizontal radio channel. See
Figure 644 for an example of a Provisioned Vertical XPIC radio channel.
