Nokia 9500 MPR - Figure 728 Main Equipment Window: SDH Transponder Card Highlighted

WebEML User Manual Line Facing PDH/SDH Tributary Loopback
969

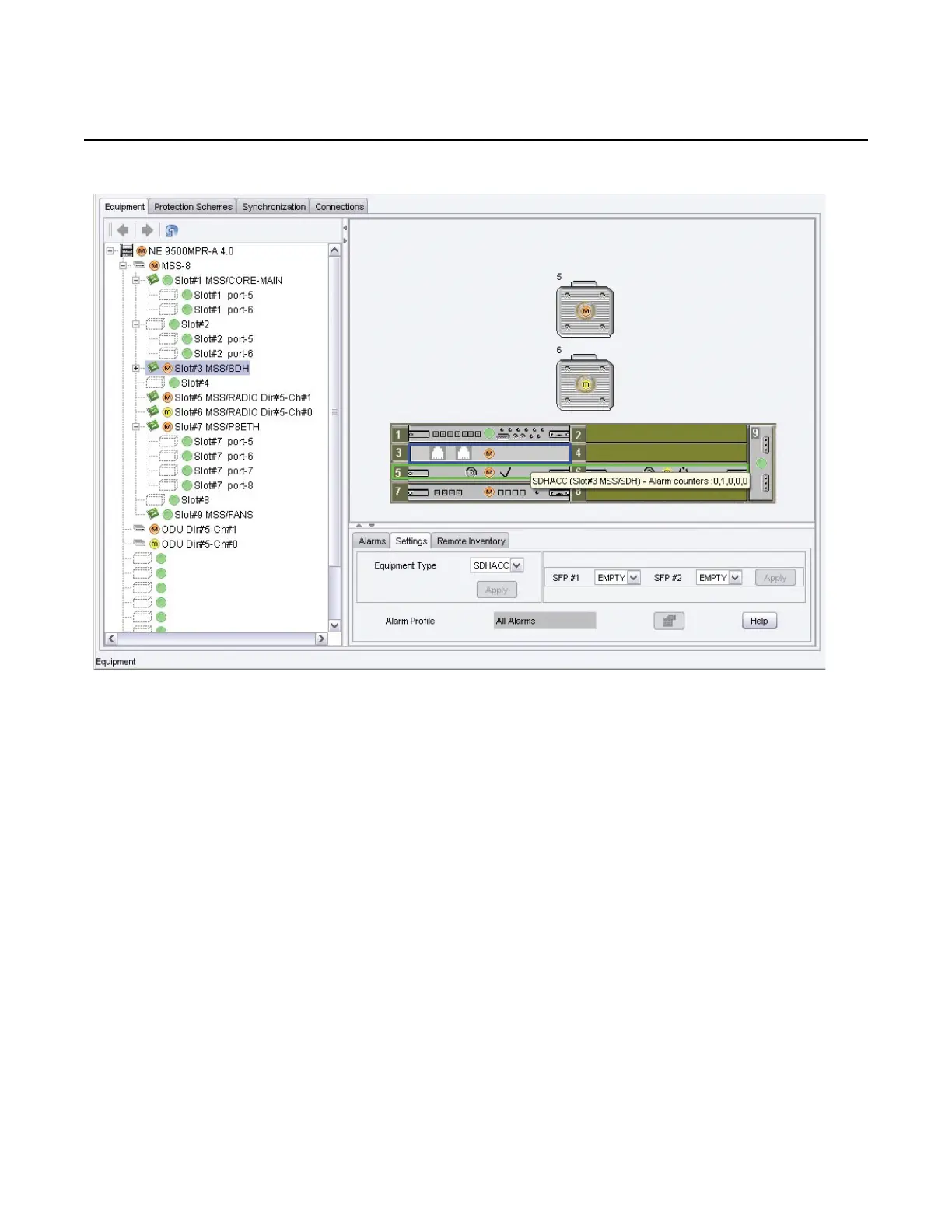

Figure 728 Main Equipment window: SDH Transponder Card highlighted
i. The PDH/SDH Main View for the selected PDH/SDH transponder opens.
ii. Select Loopback tab. For E1/DS1 or DS3 loopback, see Figure 729. For
SDH loopback, see Figure 730.
iii. For SDH loopback, select Port#s.n. See Figure 730.
iv. For PDH loopback, select Port#nn External Line from the resource tree
area; DS1 Port#1-32 External Line or DS3 Port#1-2 External Line. See
Figure 729
For SDH loopback, select LINEFACING from the resource tree area. See
Figure 730.
Release 7.0.0 3DB 19286 ACAA Issue 01
