Nokia 9500 MPR - Figure 486 Node a to Node C: Pass-Through Cross-Connection on Node B

WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
671

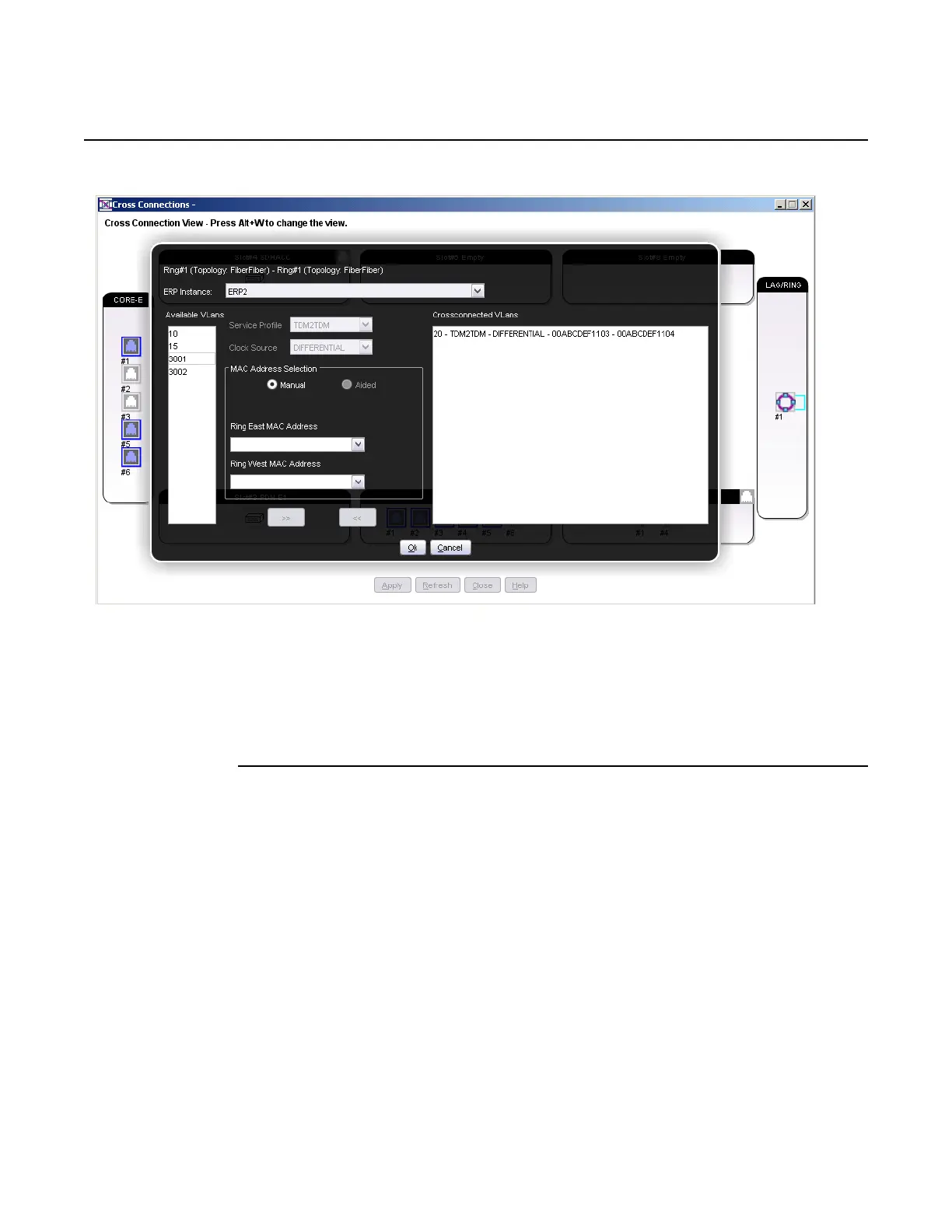

Figure 486 Node A to Node C: pass-through cross-connection on Node B
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring East MAC address: Node C Unicast MAC address
e. Enter the Ring West MAC address: Node A Unicast MAC address
3. Configure a Radio-Ring or PDH-Ring cross-connection on Node C, see
Figure 487 and Figure 488.
