WebEML User Manual Enable equipment

503

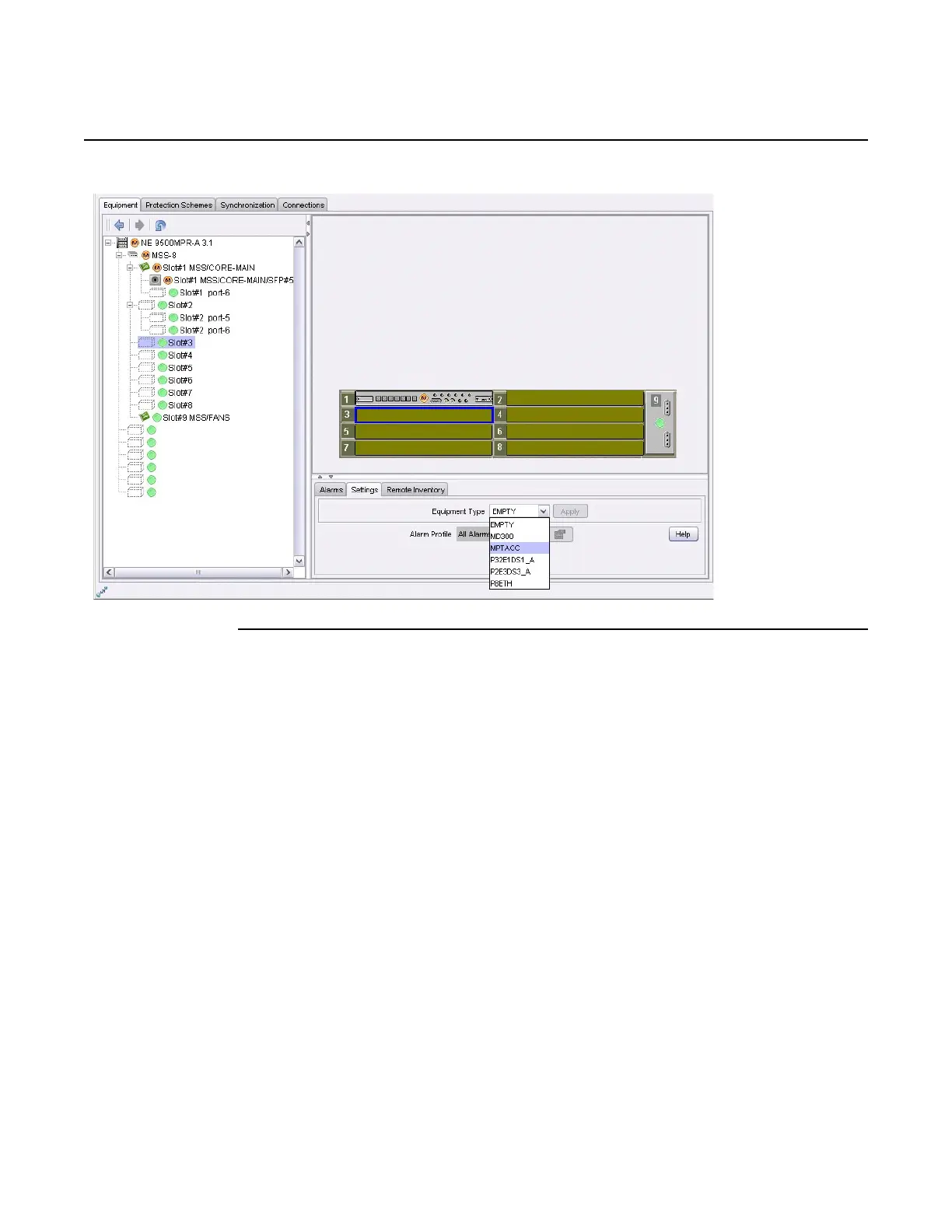

Figure 319 Select MPTACC equipment type

4. Click Apply.

The MPT Access card will populate selected slot #. See Figure 320.

Release 7.0.0 3DB 19286 ACAA Issue 01
