Administer external alarm points on an Auxiliary
card
112
WebEML User Manual
15.4 Procedures
This chapter includes procedures for the following:
• To provision external alarm inputs
• To provision external alarm outputs
• To provision external alarm output state
To provision external alarm inputs
1. Select MSS-4/AUX slot #4 or MSS-8/AUX slot #8 in the resource tree area.
This selection should also highlight the MSS/AUX card in blue on the graphical
representation of the MSS shelf in the resource list area.
2. Double-click on the blue AUX Card.
The AUX Main View window opens.
3. Click the External Points tab.
4. Click the Settings tab. See Figure 31.

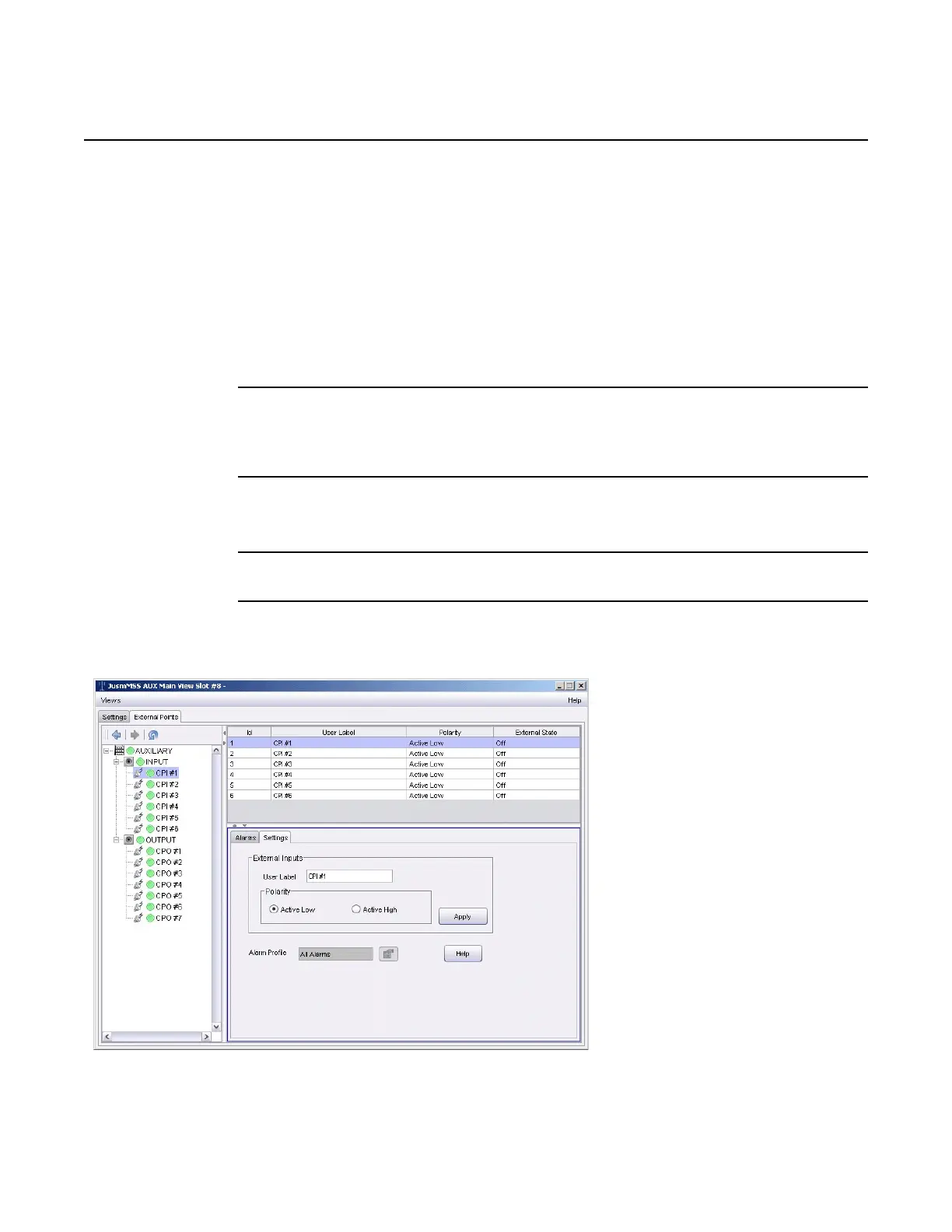

Figure 31 External Alarm Input Setting tab
