WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
651

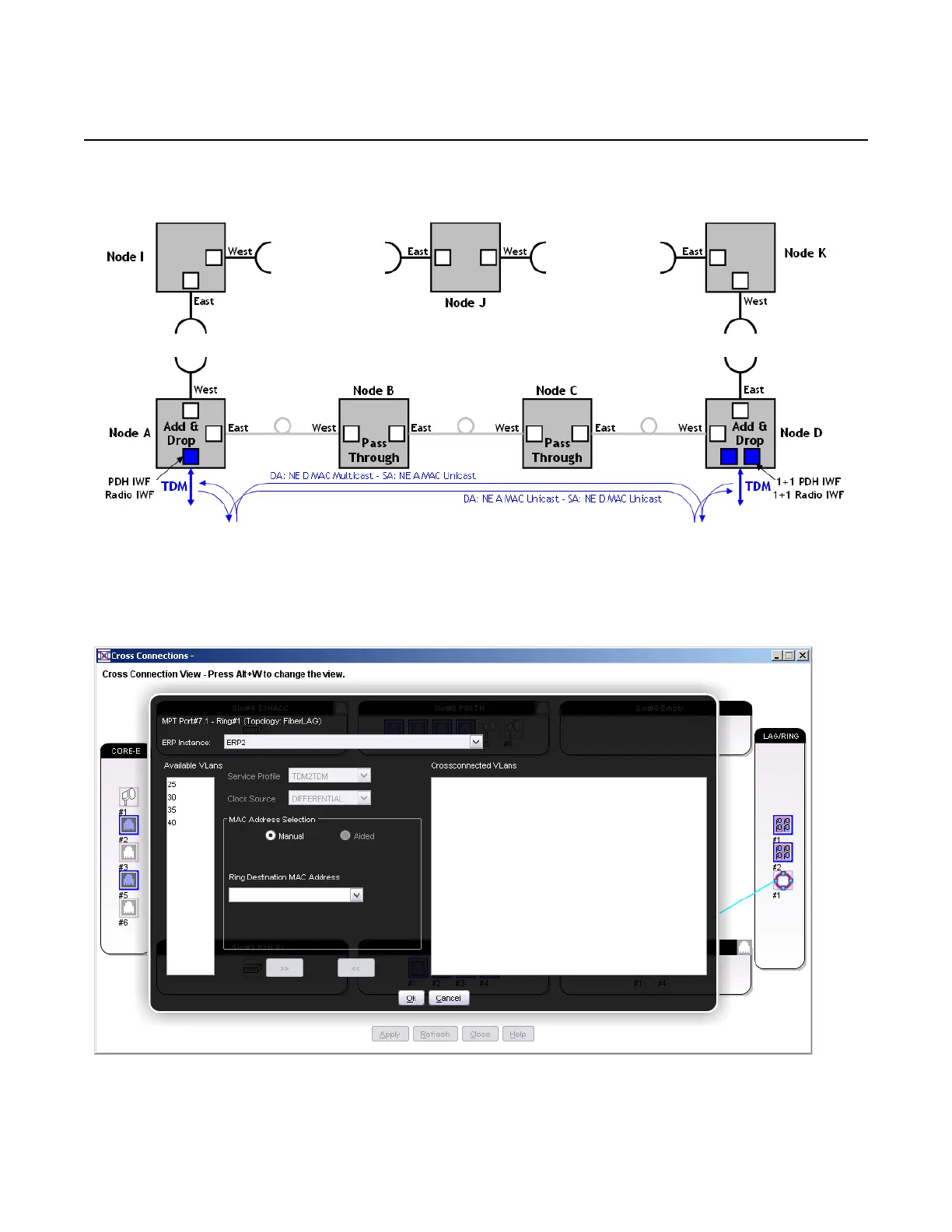

Figure 462 Cross-connection between Node A and Node D (protected)
Configure a Radio-Ring or PDH-Ring cross-connection on Node A, see
Figure 463 and Figure 464.
Figure 463 Node A to Node D (protected): Radio-Ring cross-connection on Node A
