Nokia 9500 MPR - Figure 347 Enabled P8 ETH

To Next Page

To Previous Page

WebEML User Manual Disable equipment

533

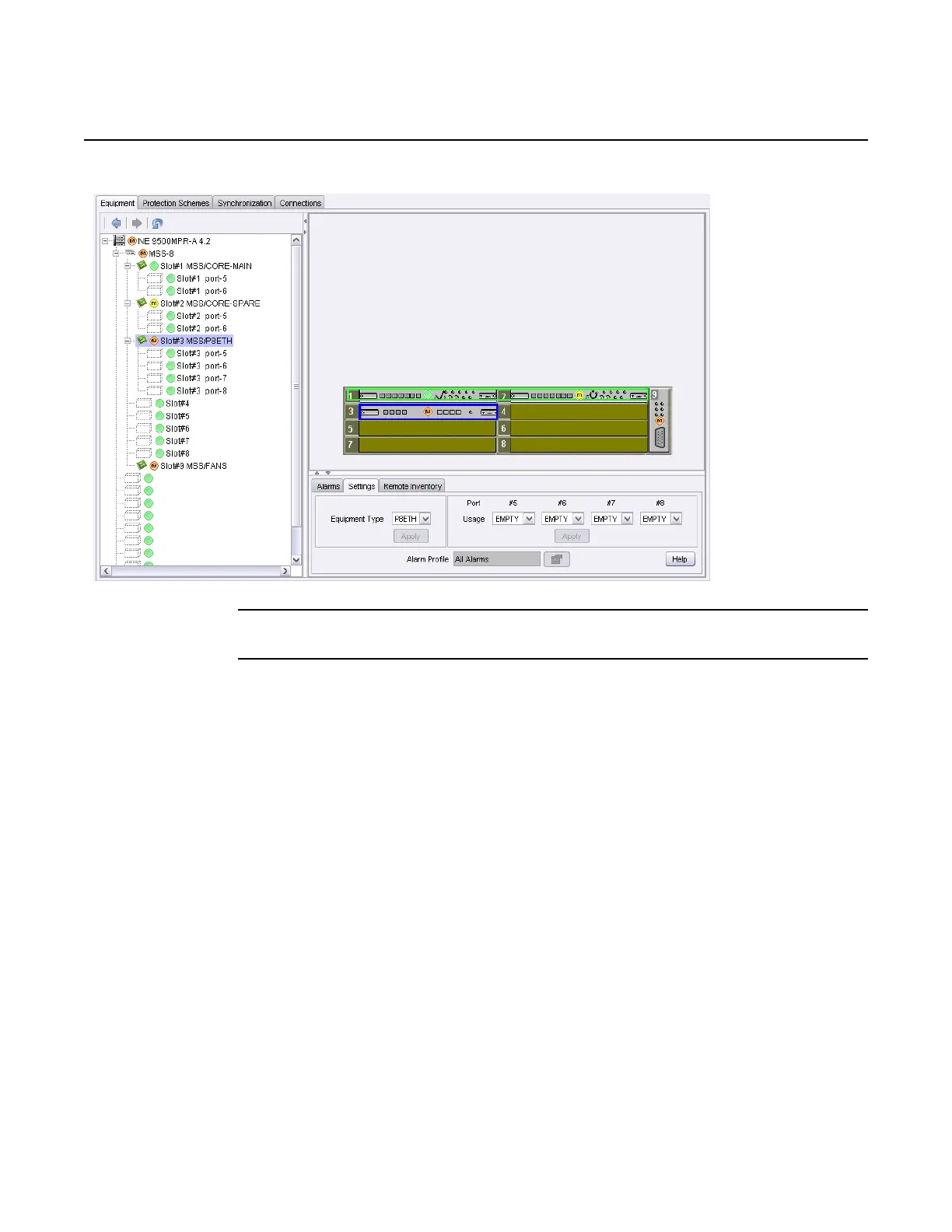

Figure 347 Enabled P8ETH

2. Click the Settings Tab in the resource detail area.

3. From the Equipment Type drop-down menu, select EMPTY. See Figure 348.

Release 7.0.0 3DB 19286 ACAA Issue 01
