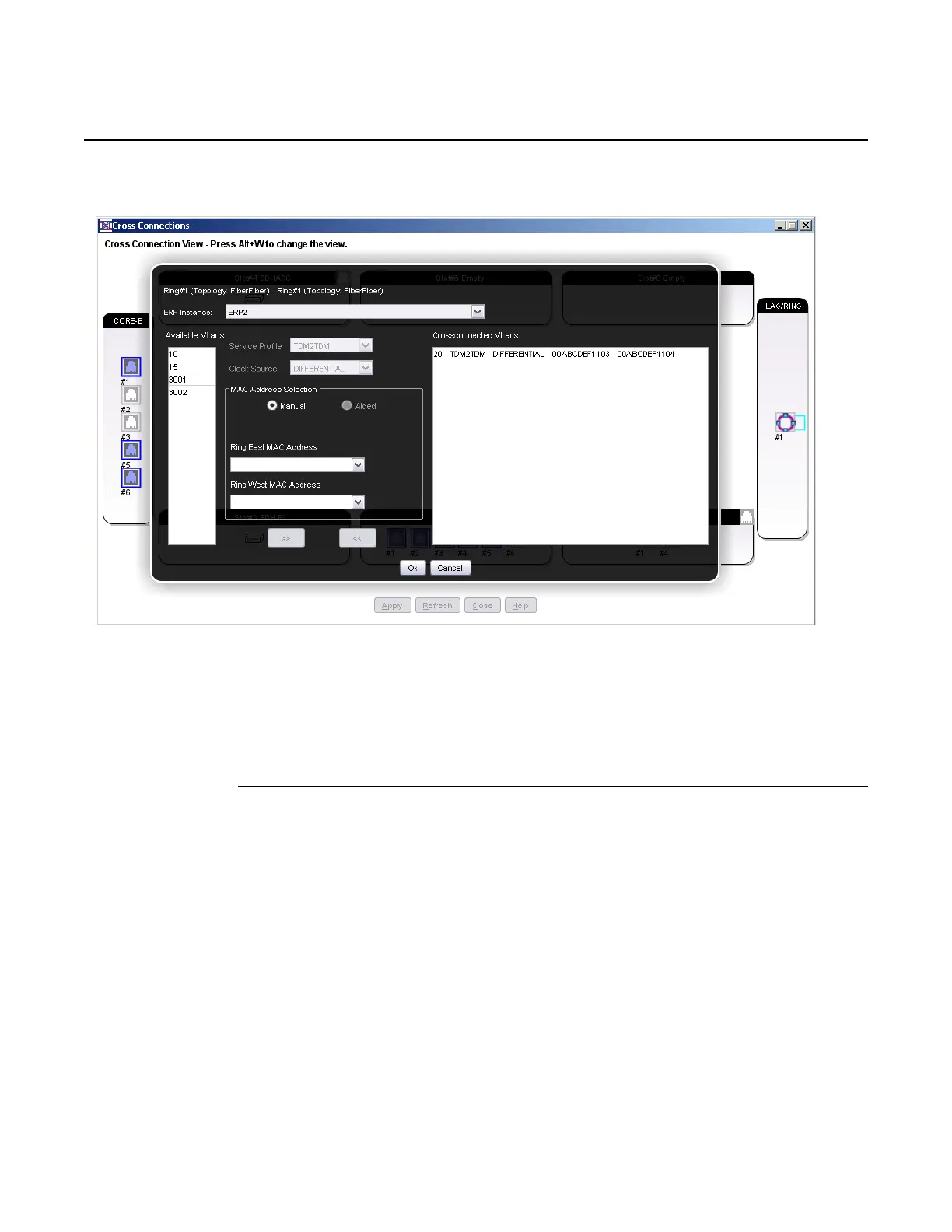

Nokia 9500 MPR - Figure 473 Node a (Protected) to Node D (Protected): Pass-Through Cross-Connection on Node C

Provision cross connections in a mixed fiber/
microwave Ring
660
WebEML User Manual
Figure 473 Node A (protected) to Node D (protected): pass-through cross-connection on Node
C
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring East MAC address: Node D Multicast MAC address
e. Enter the Ring West MAC address: Node A Multicast MAC address
4. Configure a Radio-Ring or PDH-Ring cross-connection on Node D, see
Figure 474 and Figure 475.
Release 7.0.0 3DB 19286 ACAA Issue 01
